SKU: ST20-RHP

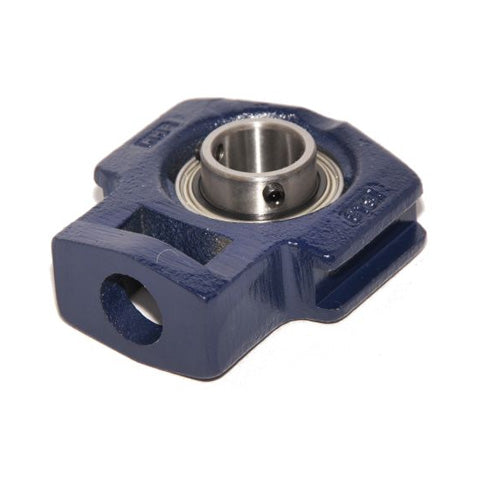

RHP ST20 Cast Iron Take Up Unit and 20mm Bore Insert

RHP ST20 Cast Iron Take Up Unit and 20mm Bore Insert
Regular price $42.00 ex VAT
Regular price Sale price $42.00 ex VAT
Sale Sold out

In stock

Price Break
10+ $19.84
20+ $18.72
30+ $18.50
40+ $18.28
50+ $18.05
75+ $17.83
100+ $16.72
200+ $16.49
250+ $16.27
500+ $16.05
1000+ $15.60
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 20mm
L 95.5mm
L1 62mm
L2 11.5mm
L3 16mm
L4 50.5mm
L5 36.5mm
H 88.5mm
H1 58.5mm
H2 32mm
H3 76mm
N 22.5mm
A 36mm
A1 27.5mm
A2 13.5mm
B 30.96mm
s 12.75mm
d1 28.5mm
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
