SKU: ST2.7/16DEC-RHP

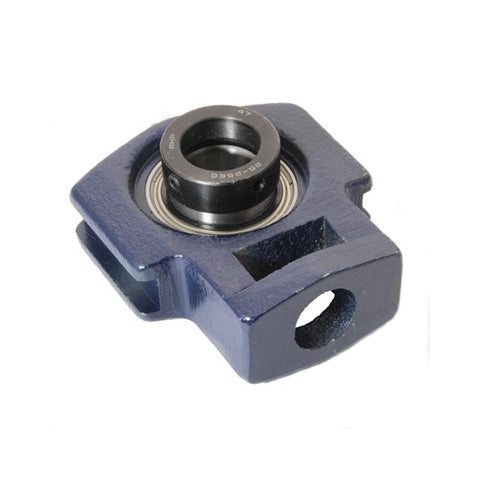

RHP ST2-7/16DEC Cast Iron Take Up Unit and 2-7/16 inch Bore Insert
RHP ST2-7/16DEC Cast Iron Take Up Unit and 2-7/16 inch Bore Insert
Regular price
$338.40
ex VAT
Regular price
Sale price
$338.40
ex VAT
In stock
Price Break
10+
$301.18
19+
$284.26
29+
$280.87
39+
$277.49
49+
$274.10
74+
$270.72
99+
$253.80
199+
$250.42
249+
$247.03
499+
$243.65
999+
$236.88
Couldn't load pickup availability
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- ST
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 7.559 inch |
| L1 | 4.685 inch |
| L2 | 0.748 inch |
| L3 | 1.26 inch |
| L4 | 3.839 inch |
| L5 | 2.756 inch |
| H | 5.748 inch |
| H1 | 3.976 inch |
| H2 | 2.52 inch |
| H3 | 5.118 inch |
| N | 1.378 inch |
| A | 2.5 inch |
| A1 | 1.831 inch |
| A2 | 1.063 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.312 inch |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 5.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-7/16DECG+insonly">1060-2-7/16DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
