SKU: SSUCP.207-20

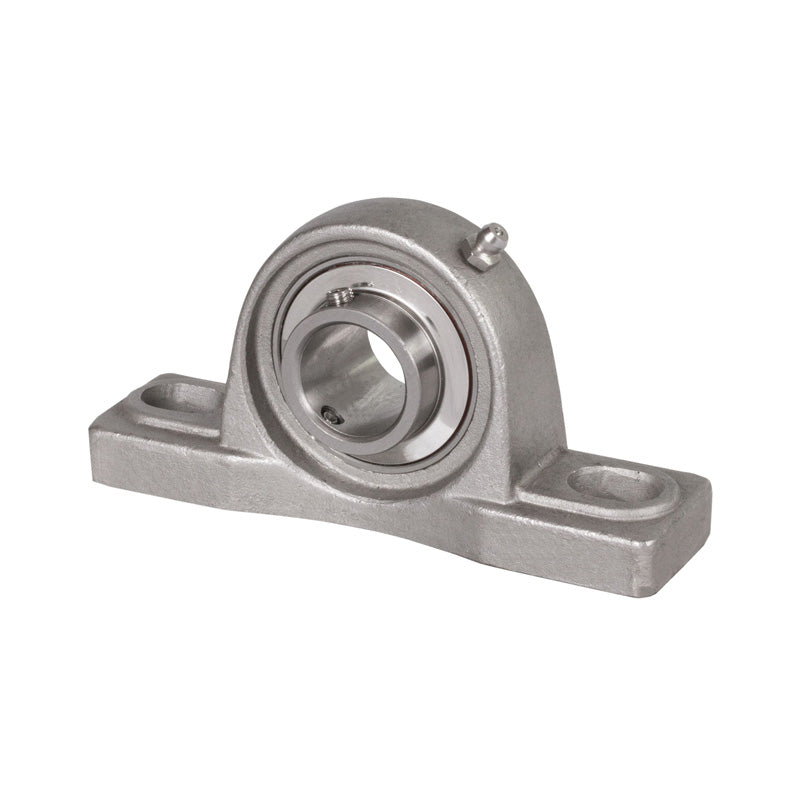

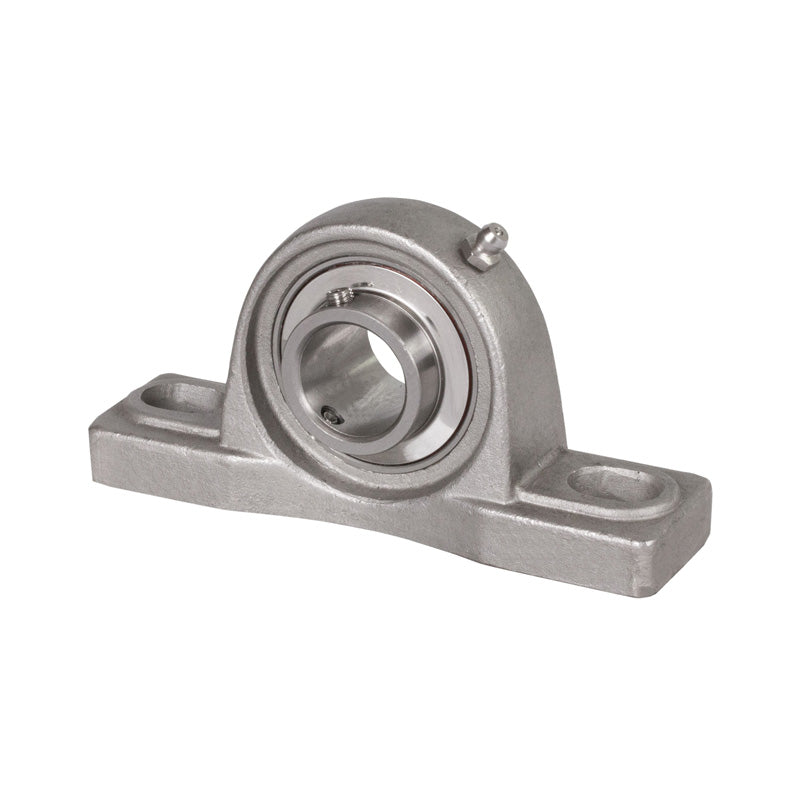

SSUCP207-20 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Stainless Insert
SSUCP207-20 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Stainless Insert
Regular price
$125.46
ex VAT
Regular price
Sale price
$125.46
ex VAT
Equivalent to: NP1.1/4
In stock
Price Break
10+
$111.66
19+
$105.39
29+
$104.13
39+
$102.88
49+
$101.62
74+
$100.37
99+
$94.10
199+
$92.84
249+
$91.59
499+
$90.33
999+
$87.82
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP1.1/4
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SSUCP
- Bolt Hole Centres:
- 126mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| h | 47.6mm |
| a | 167mm |
| e | 126mm |
| b | 48mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 19mm |
| w | 92mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt | 14mm |
| Weight | 1.6 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
