SKU: SSUCP.202-10

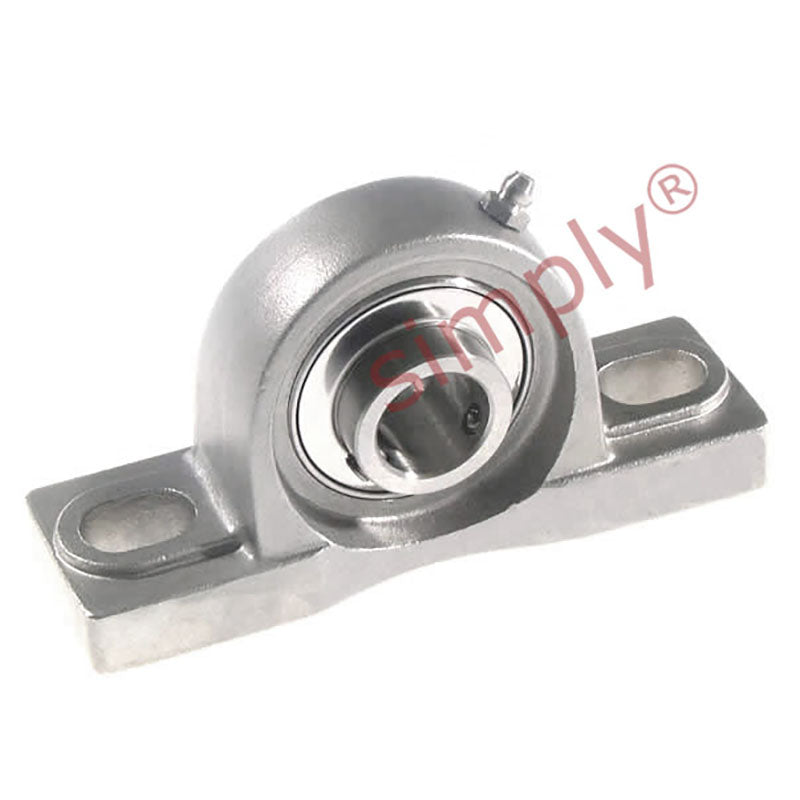

SSUCP202-10 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 5/8 inch Bore Stainless Insert
SSUCP202-10 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 5/8 inch Bore Stainless Insert
Regular price
$46.17
ex VAT
Regular price
Sale price
$46.17
ex VAT
Equivalent to: NP5/8
In stock
Price Break
3+
$21.81
4+
$20.58
9+
$20.34
19+
$20.09
49+
$19.85
99+
$19.60
499+
$18.38
999+
$18.13
1999+
$17.89
2999+
$17.64
4999+
$17.15
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP5/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- SSUCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 5/8 inch |
|---|---|
| h | 30.2mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.63 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
| Rec max speed | 8800 rpm |
