SKU: SSUC.212
SSUC212 Metric Stainless Steel Bearing Insert with 60mm Bore 110mm Outside Dia
SSUC212 Metric Stainless Steel Bearing Insert with 60mm Bore 110mm Outside Dia
Regular price
$98.09
ex VAT
Regular price
Sale price
$98.09
ex VAT
In stock
Price Break
3+
$46.33
4+
$43.72
9+
$43.20
19+
$42.68
49+
$42.16
99+
$41.64
499+
$39.04
999+
$38.52
1999+
$38.00
2999+
$37.48
4999+
$36.44
Description
Description
|

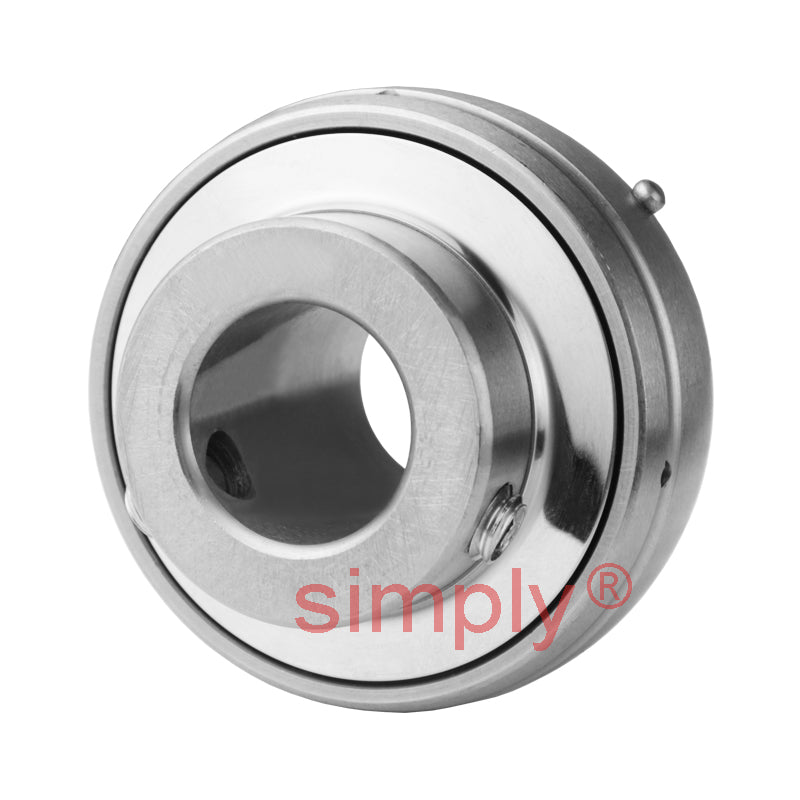

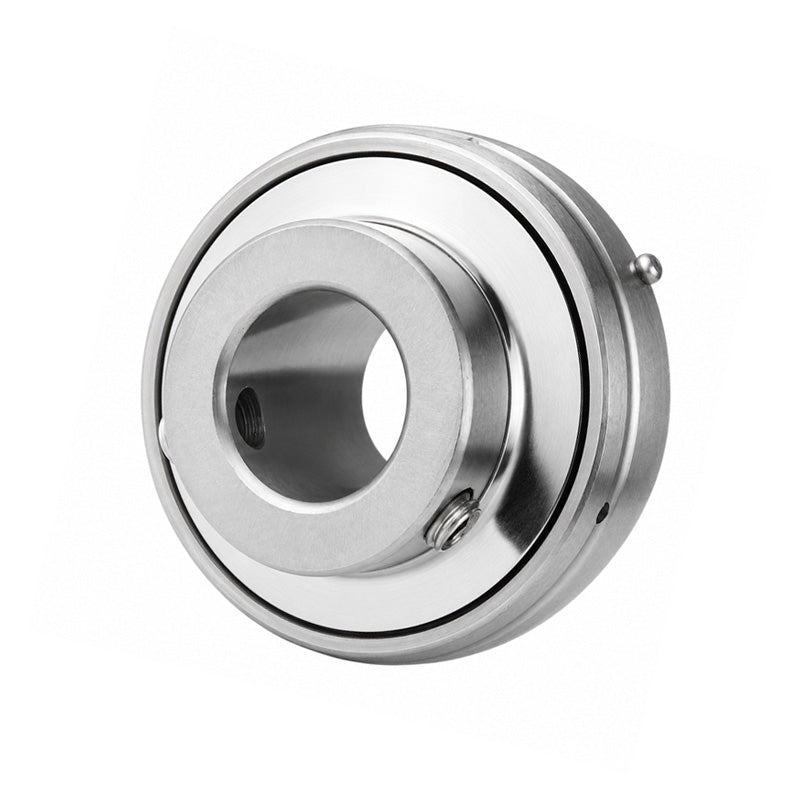

SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- SSUC
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.45 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
