SKU: SSUC.206-20

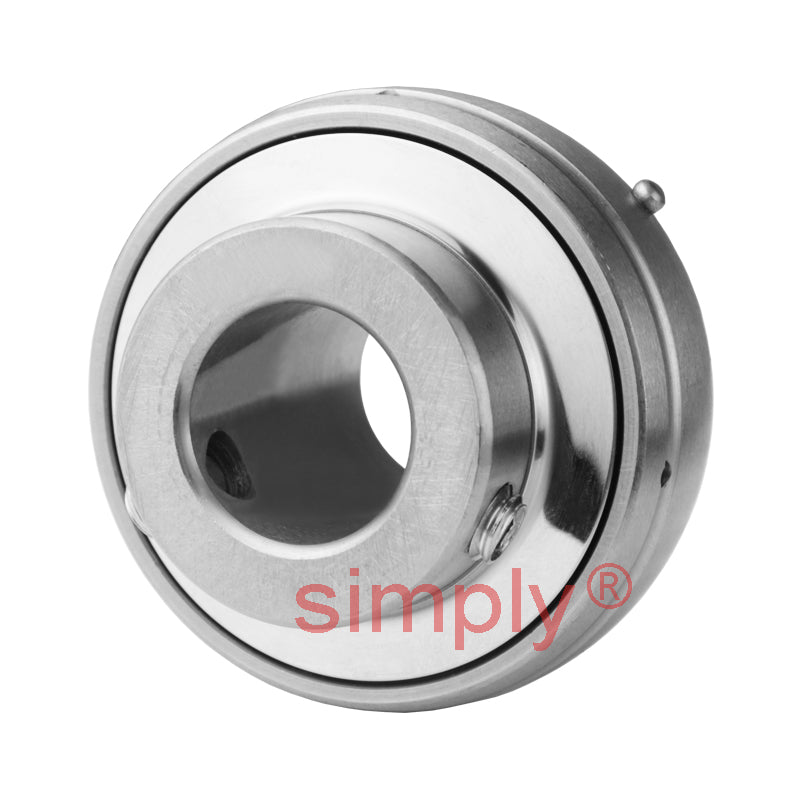

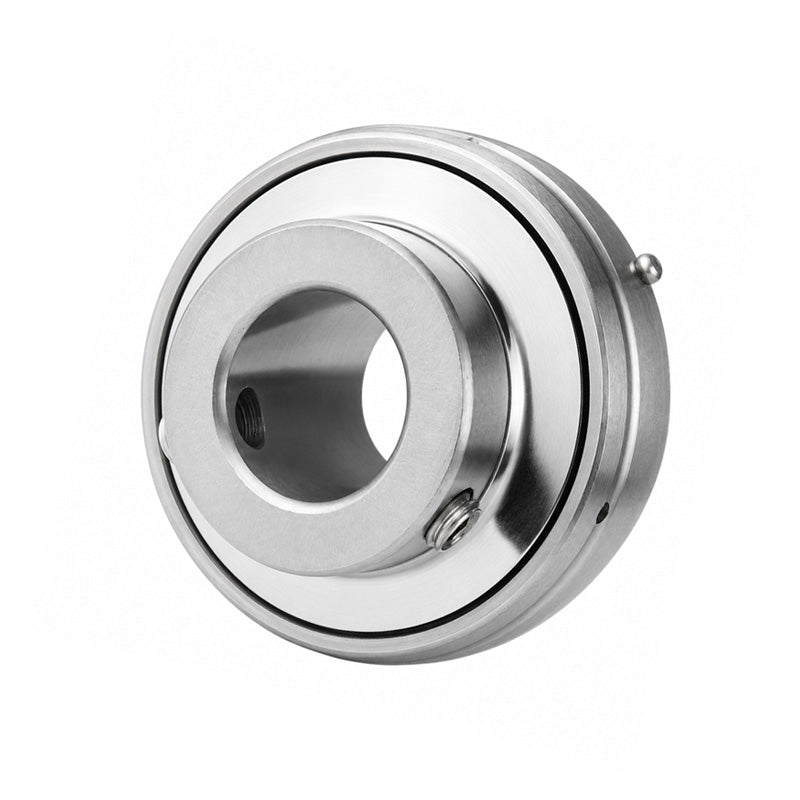

SSUC206-20 Imperial Stainless Steel Bearing Insert with 1-1/4 inch Bore 62mm Outside Dia
SSUC206-20 Imperial Stainless Steel Bearing Insert with 1-1/4 inch Bore 62mm Outside Dia
Regular price
$27.57
ex VAT
Regular price
Sale price
$27.57
ex VAT
In stock
Price Break
3+
$13.02
4+
$12.29
9+
$12.14
19+
$12.00
49+
$11.85
99+
$11.70
499+
$10.97
999+
$10.83
1999+
$10.68
2999+
$10.53
4999+
$10.24
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Style:
- SSUC
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| n | 15.9mm |
| m | 22.2mm |
| G | 6mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.34 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
