SKU: SSBP.PL.204

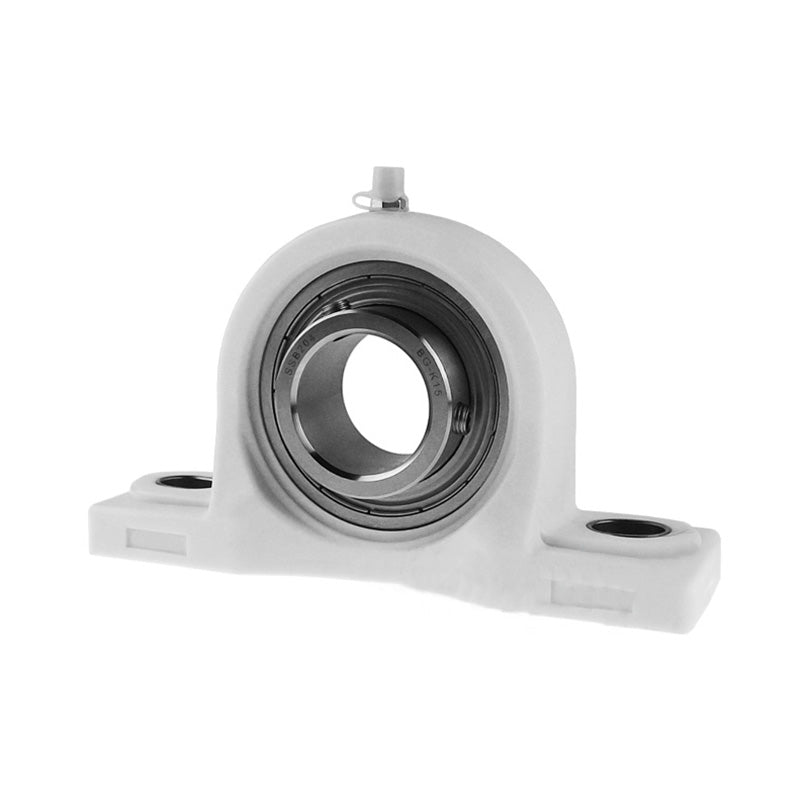

SSBPPL204 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
SSBPPL204 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
Regular price
$23.54
ex VAT
Regular price
Sale price
$23.54
ex VAT
In stock
Price Break
10+
$20.95
19+
$19.77
29+
$19.54
39+
$19.30
49+
$19.07
74+
$18.83
99+
$17.66
199+
$17.42
249+
$17.18
499+
$16.95
999+
$16.48
Couldn't load pickup availability
Description
Description
SSBPPL Thermo Plastic Two Bolt Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBP
- Bolt Hole Centres:
- 95mm

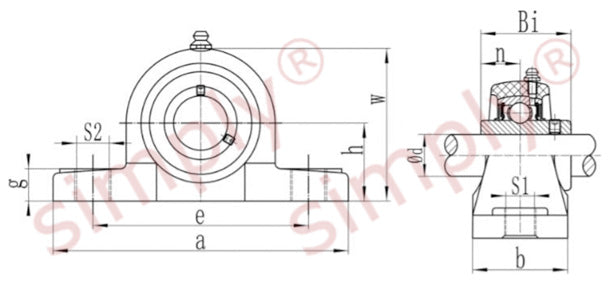

Technical
Technical
| d | 20mm |
|---|---|
| h | 33mm |
| a | 127mm |
| e | 95mm |
| b | 38mm |
| g | 14mm |
| s1 | 11mm |
| s2 | 14mm |
| w | 65.5mm |
| Bi | 31mm |
| n | 12.5mm |
| Bolt | 10mm |
| Weight | 0.12kg |
| Temperature Range | -35 to 102 deg C |
