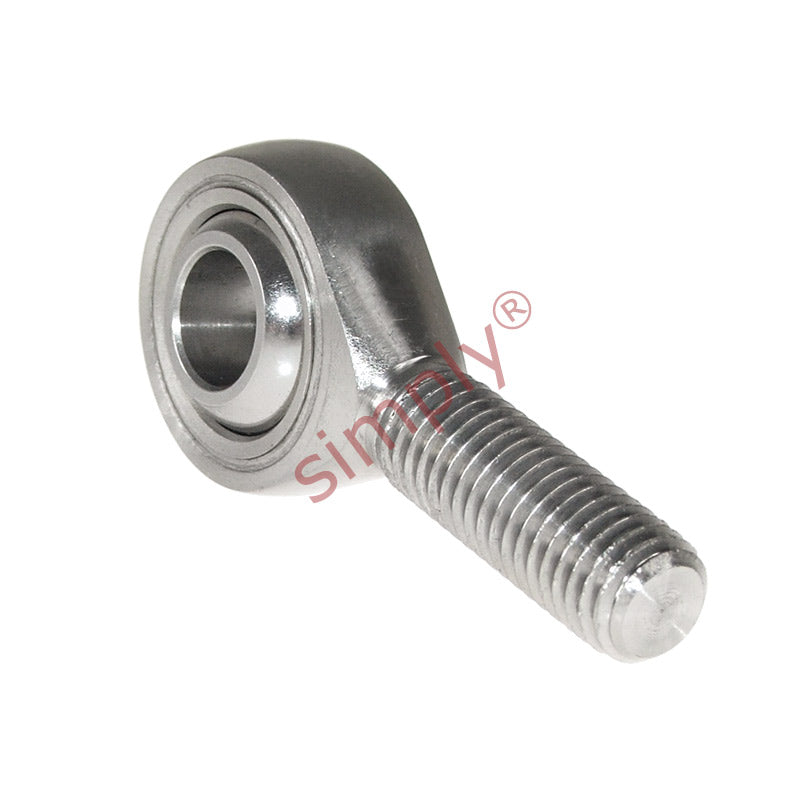

Budget SSPOS6 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 6mm Bore M6x1 Thread
Budget SSPOS6 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 6mm Bore M6x1 Thread
Regular price
$20.07
ex VAT
Regular price
Sale price
$20.07
ex VAT
In stock
Price Break
10+
$9.48
19+
$8.95
29+
$8.84
39+
$8.73
49+
$8.63
74+
$8.52
99+
$7.99
199+
$7.88
249+
$7.77
499+
$7.67
999+
$7.46
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M6x1
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6mm
- Material:
- PTFE Lined
Technical
Technical
| d | 6mm |
|---|---|
| B | 9mm |
| r1 | 0.3mm |
| C1 | 6.75mm |
| d1 max | 8.9mm |
| d2 | 18mm |
| d3 | M6x1 |
| h | 36mm |
| l1 | 22mm |
| l2 | 45mm |
| Ball diameter | 1/2 inch |
| Dynamic load Cr | 4.3 kN |
| Static load Cor | 4.8 kN |
| Max angle α | 13 |
| Weight | 0.025 kg |
