SKU: SS.POS10.EU

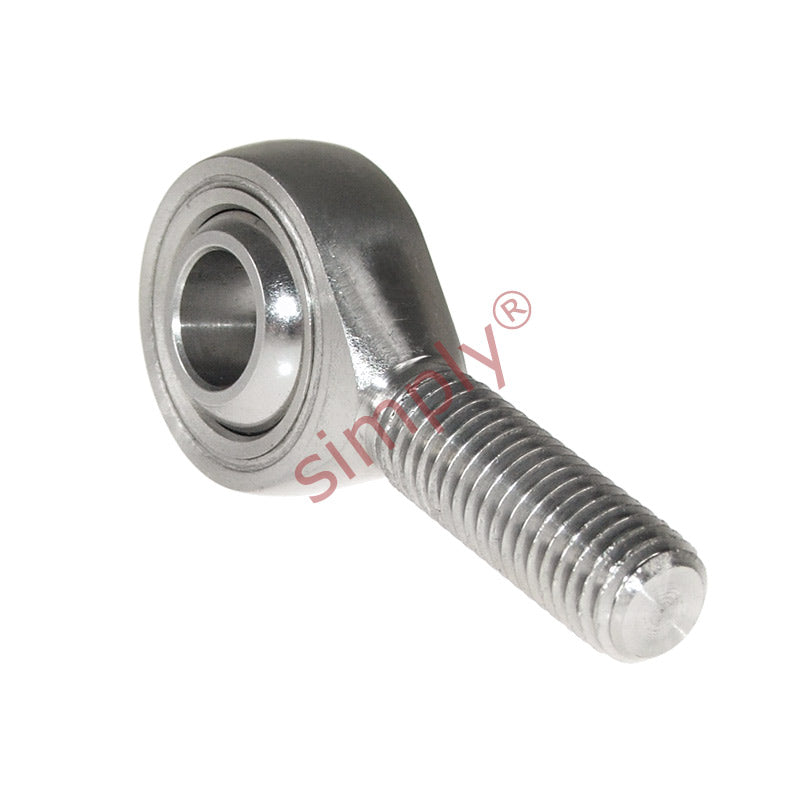

Budget SSPOS10 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
Budget SSPOS10 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
Regular price
$26.93
ex VAT
Regular price
Sale price
$26.93
ex VAT
In stock
Price Break
10+
$12.72
19+
$12.00
29+
$11.86
39+
$11.72
49+
$11.57
74+
$11.43
99+
$10.72
199+
$10.57
249+
$10.43
499+
$10.29
999+
$10.00
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M10x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
- Material:
- PTFE Lined
Technical
Technical
| d | 10mm |
|---|---|
| B | 14mm |
| r1 | 0.6mm |
| C1 | 10.5mm |
| d1 max | 12.9mm |
| d2 | 26mm |
| d3 | M10x1.5 |
| h | 48mm |
| l1 | 29mm |
| l2 | 61mm |
| Ball diameter | 3/4 inch |
| Dynamic load Cr | 10 kN |
| Static load Cor | 13.6 kN |
| Max angle α | 13 |
| Weight | 0.054 kg |
