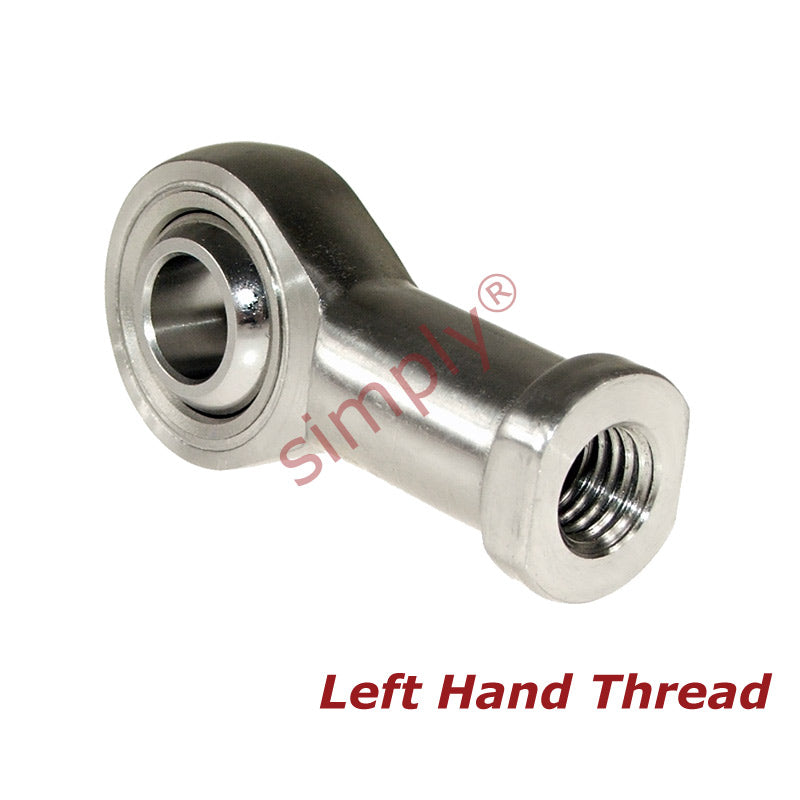

Budget SSPHS5L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
Budget SSPHS5L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
Regular price
$16.26
ex VAT
Regular price
Sale price
$16.26
ex VAT
In stock
Price Break
10+
$7.68
19+
$7.25
29+
$7.16
39+
$7.08
49+
$6.99
74+
$6.90
99+
$6.47
199+
$6.39
249+
$6.30
499+
$6.21
999+
$6.04
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: LEFT hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M5x0.8
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 5mm
- Material:
- PTFE Lined
Technical
Technical
| d | 5mm |
|---|---|
| B | 8mm |
| r1 | 0.3mm |
| C1 | 6mm |
| d1 max | 7.7mm |
| d2 | 16mm |
| d3 | M5x0.8 |
| h1 | 27mm |
| L3 | 13mm |
| L4 | 35mm |
| L5 | 4mm |
| d4 | 9mm |
| d5 | 11mm |
| S | 9mm |
| Ball diameter | 7/16 inch |
| Dynamic load Cr | 3.3mm |
| Static load Cor | 5.8mm |
| Max angle α | 13 |
| Weight | 0.0165 kg |
