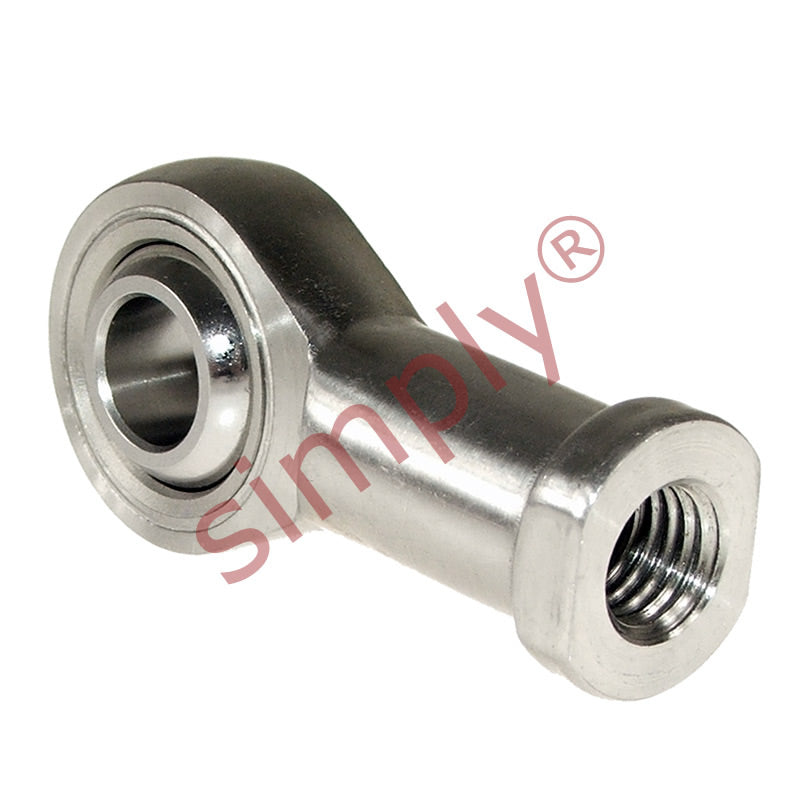

Budget SSPHS12 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread

Name: Budget SSPHS12 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
Brand: Gen
SKU: SS.PHS12.EU
Price: 31.94 CAD
Availability: InStock

$31.94 ex VAT

Sale Sold out

In stock

Price Break

10+ $15.09

19+ $14.24

29+ $14.07

39+ $13.90

49+ $13.73

74+ $13.56

99+ $12.71

199+ $12.54

249+ $12.37

499+ $12.20

999+ $11.87

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M12x1.75
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 12mm
Material:: PTFE Lined

Technical

d	12mm
B	16mm
r1	0.6mm
C1	12mm
d1 max	15.4mm
d2	30mm
d3	M12x1.75
h1	50mm
L3	24mm
L4	65mm
L5	6.5mm
d4	17.5mm
d5	22mm
S	19mm
Ball diameter	7/8 inch
Dynamic load Cr	13.3mm
Static load Cor	17.3mm
Max angle α	13
Weight	0.107 kg
