SKU: SM30-1-SKF

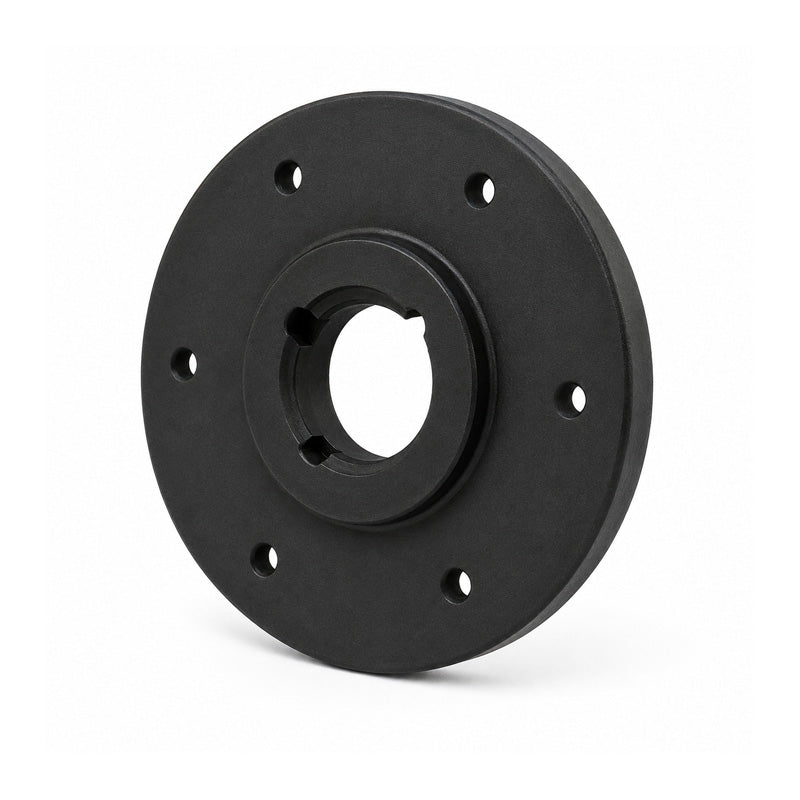

SKF SM30-1 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF SM30-1 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
$290.94
ex VAT
Regular price
Sale price
$290.94
ex VAT
In stock
Price Break
10+
$258.94
19+
$244.39
29+
$241.48
39+
$238.57
49+
$235.66
74+
$232.75
99+
$218.21
199+
$215.30
249+
$212.39
499+
$209.48
999+
$203.66
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 430mm
- Width:
- 51mm
Technical
Technical
| Hub Reference | SM30-1 |
|---|---|
| Bush Number | 3020 |
| A | 430mm |
| B | 220mm |
| C | 300mm |
| D | 51mm |
| E | 13.5mm |
| F/G | 147mm |
| H | 18.75mm |
| J | 8 x 13.5mm |
