SKU: SM25-MB

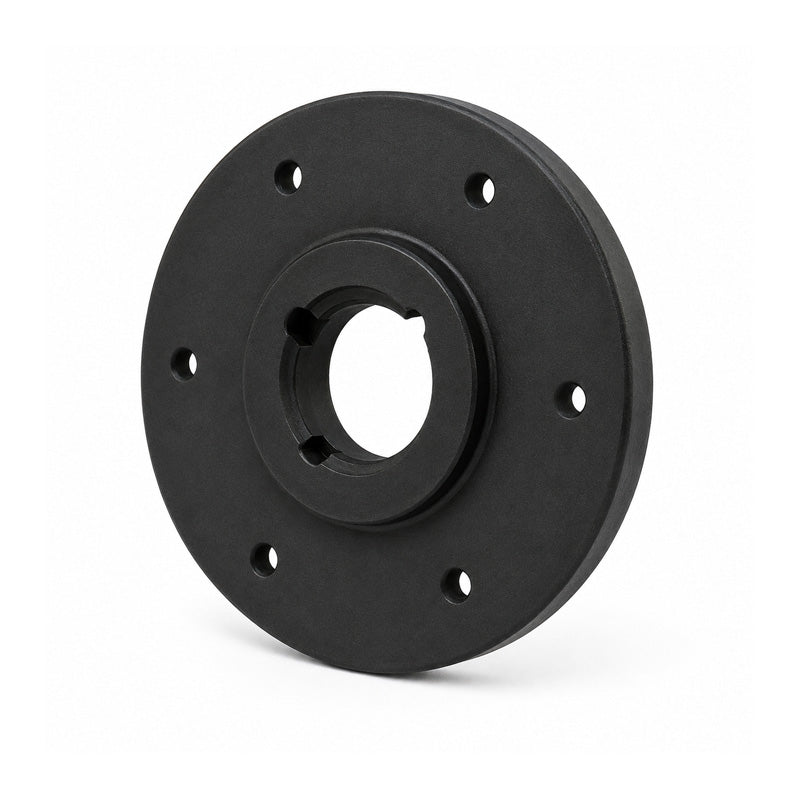

Major Brand SM25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Major Brand SM25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
$181.25
ex VAT
Regular price
Sale price
$181.25
ex VAT
In stock
Price Break
3+
$85.60
5+
$80.79
9+
$79.83
19+
$78.86
49+
$77.90
74+
$76.94
99+
$72.13
199+
$71.17
249+
$70.21
499+
$69.25
999+
$67.32
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 2517
- Outside Diameter:
- 340mm
- Width:
- 45mm
Technical
Technical
| Hub Reference | SM25 |
|---|---|
| Bush Number | 2517 |
| A | 340mm |
| B | 170mm |
| C | 240mm |
| D | 45mm |
| E | 9.5mm |
| F/G | 119mm |
| H | 17.75mm |
| J | 8 x 11.5mm |
