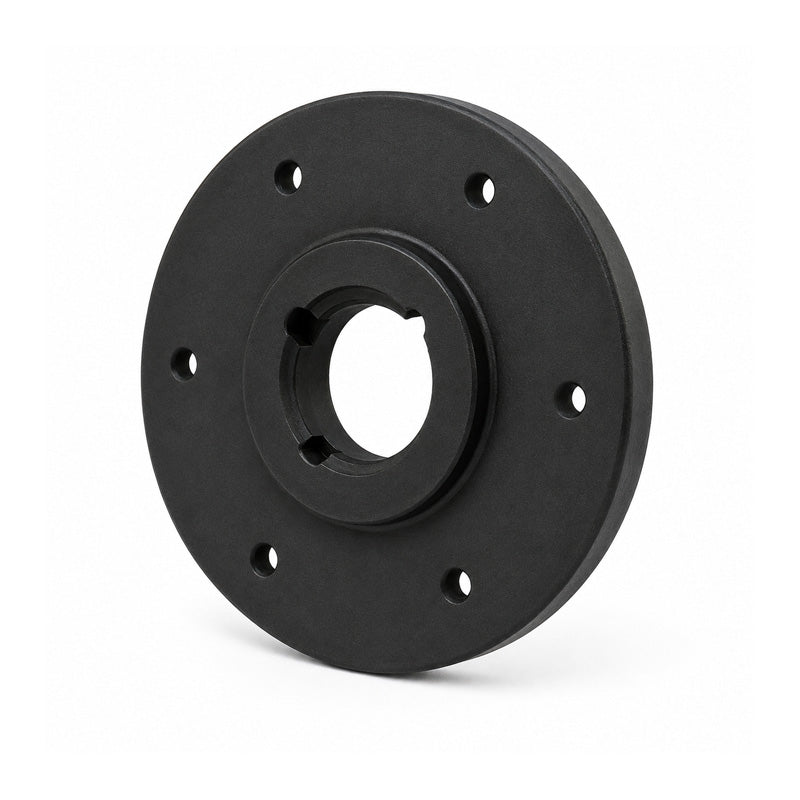

SKF SM20 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF SM20 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
$106.72
ex VAT
Regular price
Sale price
$106.72
ex VAT
In stock
Price Break
10+
$94.98
19+
$89.64
29+
$88.58
39+
$87.51
49+
$86.44
74+
$85.38
99+
$80.04
199+
$78.97
249+
$77.91
499+
$76.84
999+
$74.70
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 2012
- Outside Diameter:
- 270mm
- Width:
- 32mm
Technical
Technical
| Hub Reference | SM20 |
|---|---|
| Bush Number | 2012 |
| A | 270mm |
| B | 140mm |
| C | 190mm |
| D | 32mm |
| E | 8.5mm |
| F/G | 100mm |
| H | 11.75mm |
| J | 6x9.5mm |
