SKU: SM20-MB

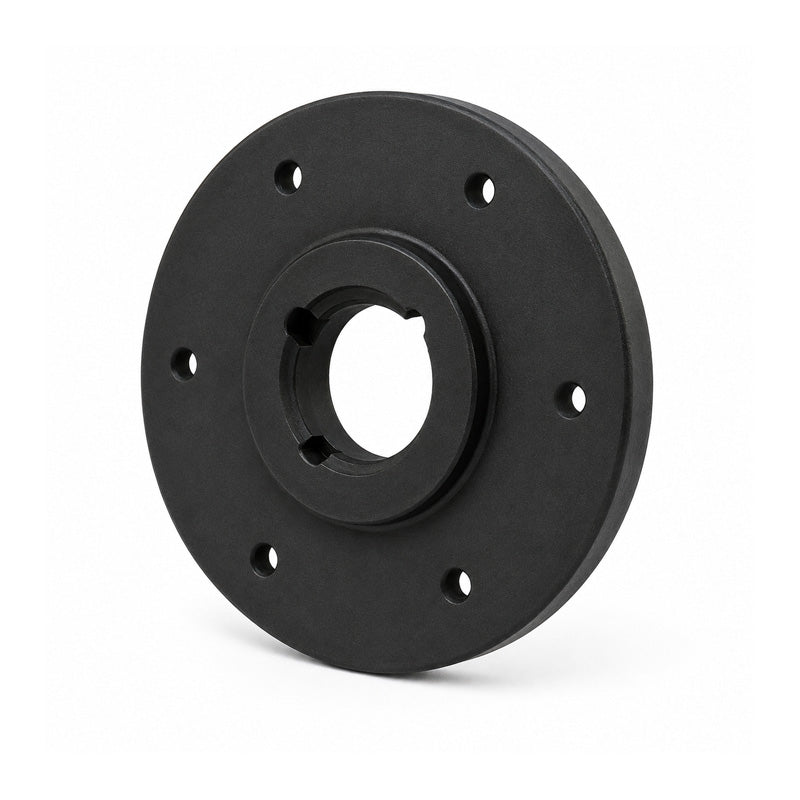

Major Brand SM20 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Major Brand SM20 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
$111.81
ex VAT
Regular price
Sale price
$111.81
ex VAT
In stock
Price Break
3+
$52.81
5+
$49.84
9+
$49.25
19+
$48.65
49+
$48.06
74+
$47.47
99+
$44.50
199+
$43.91
249+
$43.31
499+
$42.72
999+
$41.53
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 2012
- Outside Diameter:
- 270mm
- Width:
- 32mm
Technical
Technical
| Hub Reference | SM20 |
|---|---|
| Bush Number | 2012 |
| A | 270mm |
| B | 140mm |
| C | 190mm |
| D | 32mm |
| E | 8.5mm |
| F/G | 100mm |
| H | 11.75mm |
| J | 6x9.5mm |
