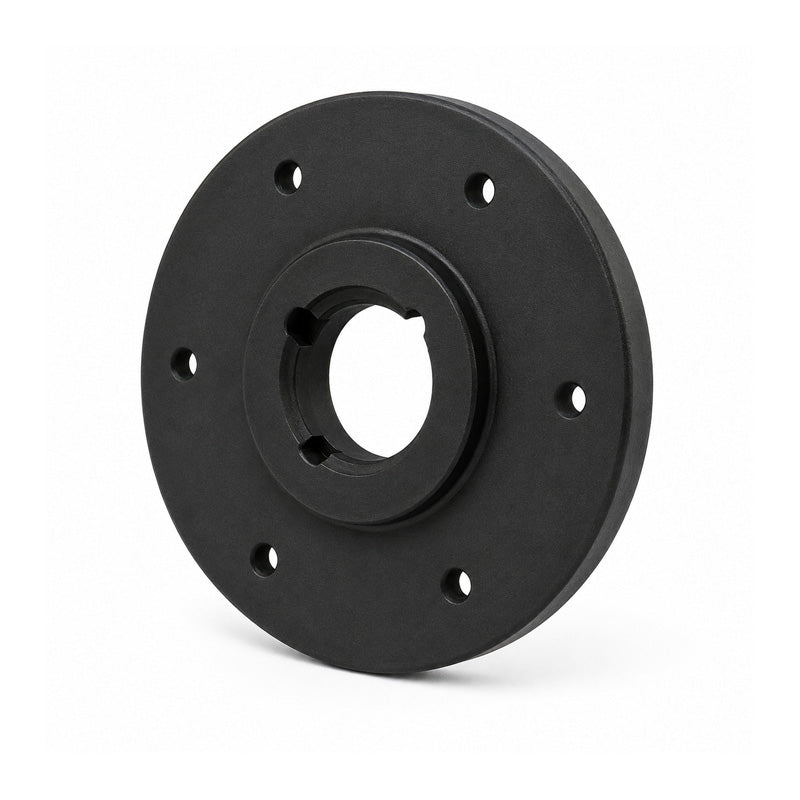

SKF SM16-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF SM16-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
$71.06
ex VAT
Regular price
Sale price
$71.06
ex VAT
In stock
Price Break
10+
$63.24
19+
$59.69
29+
$58.98
39+
$58.27
49+
$57.56
74+
$56.85
99+
$53.30
199+
$52.58
249+
$51.87
499+
$51.16
999+
$49.74
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 1615
- Outside Diameter:
- 200mm
- Width:
- 38mm
Technical
Technical
| Hub Reference | SM16-2 |
|---|---|
| Bush Number | 1615 |
| A | 200mm |
| B | 110mm |
| C | 150mm |
| D | 38mm |
| E | 7.5mm |
| F/G | 90mm |
| H | 15.25mm |
| J | 6x7.5mm |
