SKU: SLG238_IMP_NAK
NAK SLG238 Hardened Stainless Sleeve for Shafts 5.498-5.506 inch - Allow 7-10 Days
NAK SLG238 Hardened Stainless Sleeve for Shafts 5.498-5.506 inch - Allow 7-10 Days
Regular price
$146.34
ex VAT
Regular price
Sale price
$146.34
ex VAT
Allow 7-10 Days
In stock
Price Break
5+
$144.88
10+
$139.02
20+
$136.10
50+
$131.71
100+
$128.78
500+
$121.46
1000+
$102.44
Couldn't load pickup availability
Description
Description

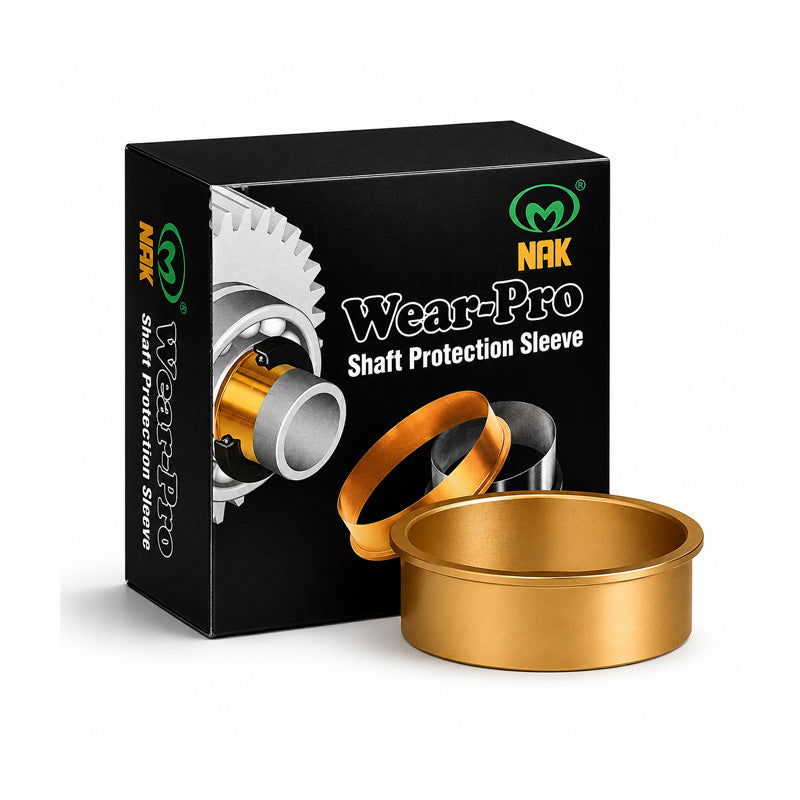

NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.705 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 5.5 inch
- Flange Diameter:
- 5.937 inch
Technical
Technical
| Shaft Diameter Range (A) | 5.498-5.506 inch |
|---|---|
| Nominal Shaft Diameter (A) | 5.5 inch |
| Flange Diameter (D) | 5.937 inch |
| Width on Shaft (X) | 0.52 inch |
| Overall Width (Y) | 0.705 inch |
| Installation Depth (Z) | 1.252 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
