SKU: SLG142_NAK

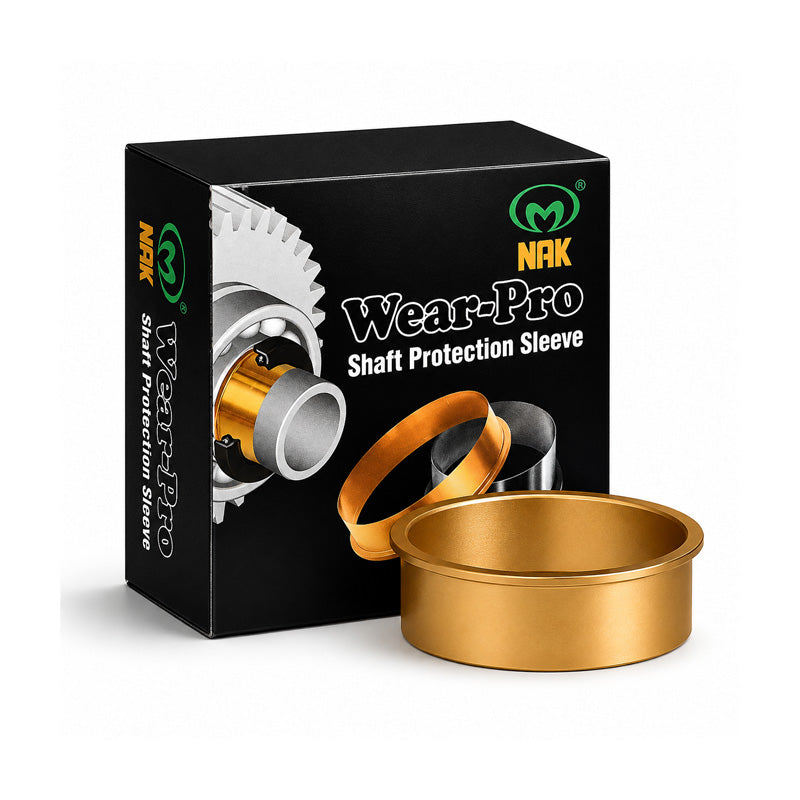

NAK SLG142 Hardened Stainless Sleeve for Shafts 74.600-74.750mm - Allow 7-10 Days
NAK SLG142 Hardened Stainless Sleeve for Shafts 74.600-74.750mm - Allow 7-10 Days
Regular price
$49.57
ex VAT
Regular price
Sale price
$49.57
ex VAT
In stock
Price Break
5+
$49.07
10+
$47.09
20+
$46.10
50+
$44.61
100+
$43.62
500+
$41.14
1000+
$34.70
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 23.8mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 74.63mm
- Flange Diameter:
- 84.9mm
Technical
Technical
| Shaft Diameter Range (A) | 74.600-74.750mm |
|---|---|
| Nominal Shaft Diameter (A) | 74.63mm |
| Flange Diameter (D) | 84.9mm |
| Width on Shaft (X) | 19.8mm |
| Overall Width (Y) | 23.8mm |
| Installation Depth (Z) | 33.4mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
