SKU: SLC40EC-RHP

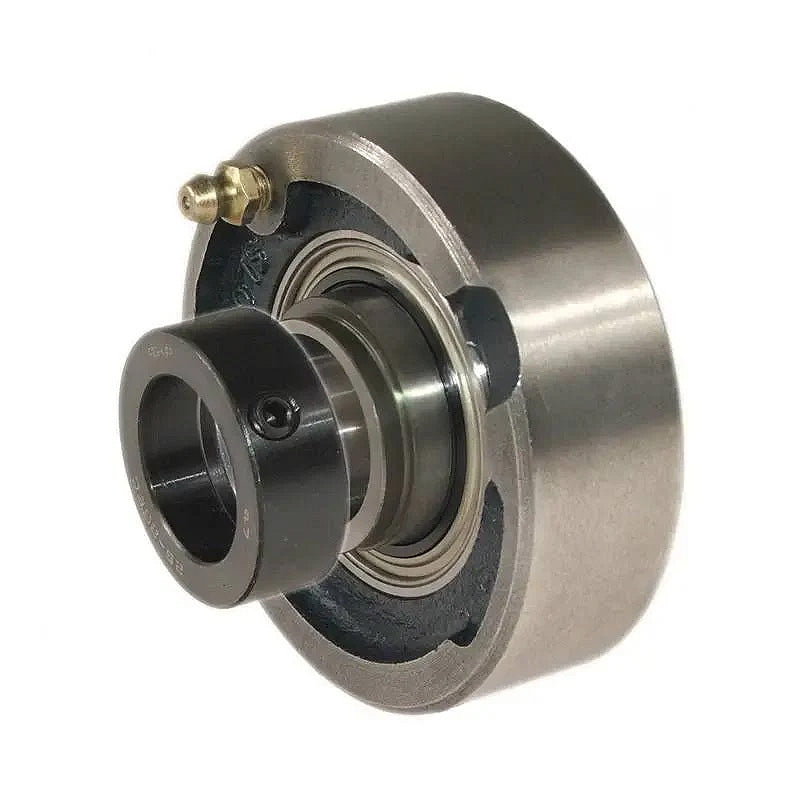

RHP SLC40EC Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
RHP SLC40EC Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
Regular price
$135.68
ex VAT
Regular price
Sale price
$135.68
ex VAT
In stock
Price Break
10+
$120.76
19+
$113.97
29+
$112.61
39+
$111.26
49+
$109.90
74+
$108.54
99+
$101.76
199+
$100.40
249+
$99.05
499+
$97.69
999+
$94.98
Couldn't load pickup availability
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 106.39mm
- Style:
- SLC
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 106.387mm |
| A | 37.31mm |
| A2 | 51.28mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 60.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
