SKU: SLC40DEC-RHP

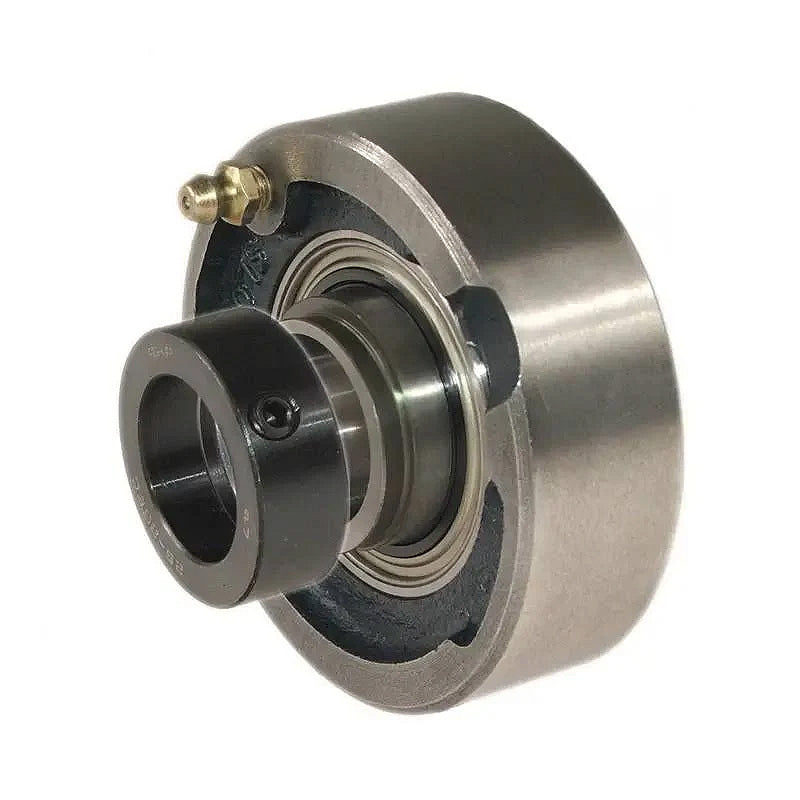

RHP SLC40DEC Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
RHP SLC40DEC Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
Regular price
$148.48
ex VAT
Regular price
Sale price
$148.48
ex VAT
In stock
Price Break
10+
$132.15
19+
$124.72
29+
$123.24
39+
$121.75
49+
$120.27
74+
$118.78
99+
$111.36
199+
$109.88
249+
$108.39
499+
$106.91
999+
$103.94
Couldn't load pickup availability
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 106.39mm
- Style:
- SLC
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 106.387mm |
| A | 37.31mm |
| A3 | 53.57mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 60.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40DECG+insonly">1040-40DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
