SKU: SLC1.3/4DEC-RHP

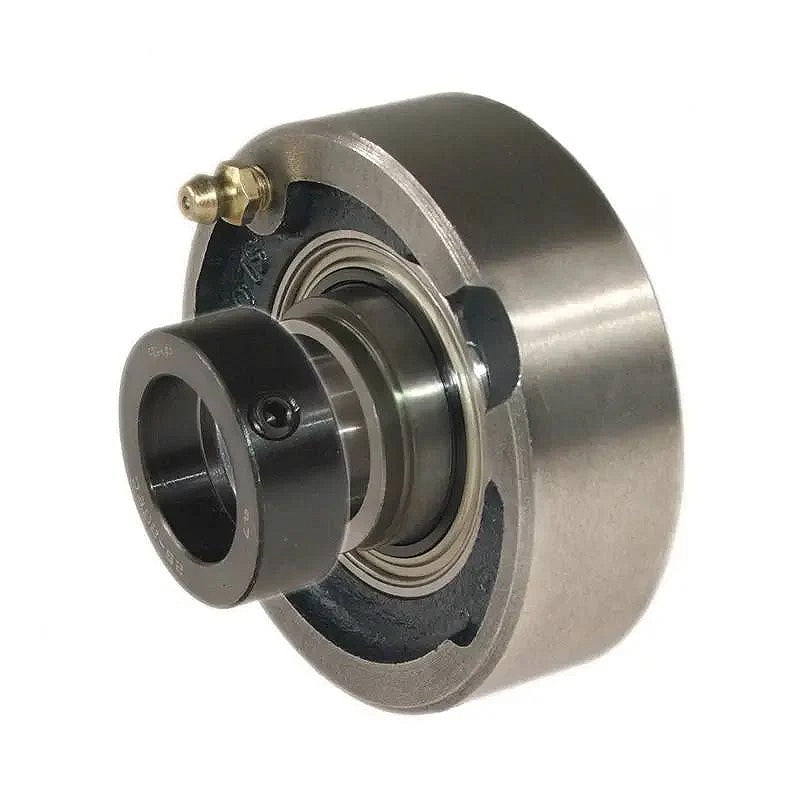

RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
Regular price
$174.75
ex VAT
Regular price
Sale price
$174.75
ex VAT
In stock
Price Break
10+
$155.53
19+
$146.79
29+
$145.04
39+
$143.30
49+
$141.55
74+
$139.80
99+
$131.06
199+
$129.32
249+
$127.57
499+
$125.82
999+
$122.33
Couldn't load pickup availability
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 111.15mm
- Style:
- SLC
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 4.376 inch |
| A | 1.437 inch |
| A3 | 2.093 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-3/4DECG+insonly">1045-1-3/4DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
