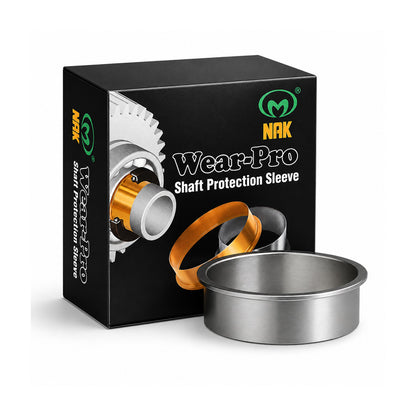

NAK SL220 Hardened Stainless Sleeve for Shafts 4.746-4.754 inch - Allow 7-10 Days
NAK SL220 Hardened Stainless Sleeve for Shafts 4.746-4.754 inch - Allow 7-10 Days
Regular price
$79.95
ex VAT
Regular price
Sale price
$79.95
ex VAT
Equivalent to: CR99475
In stock
Price Break
10+
$71.16
19+
$67.16
29+
$66.36
39+
$65.56
49+
$64.76
74+
$63.96
99+
$59.96
199+
$59.16
249+
$58.36
499+
$57.56
999+
$55.97
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99475
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.752 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 4.75 inch
- Flange Diameter:
- 5 inch
Technical
Technical
| Shaft Diameter Range (A) | 4.746-4.754 inch |
|---|---|
| Nominal Shaft Diameter (A) | 4.75 inch |
| Flange Diameter (D) | 5 inch |
| Width on Shaft (X) | 0.5 inch |
| Overall Width (Y) | 0.752 inch |
| Installation Depth (Z) | 1.5 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
