SKU: SIL8C-SKF

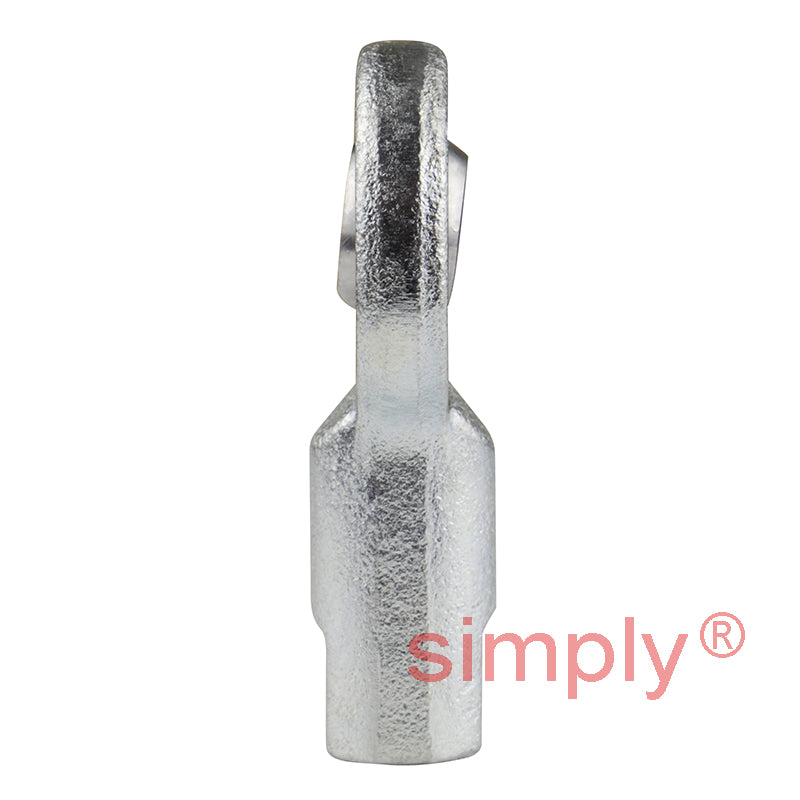

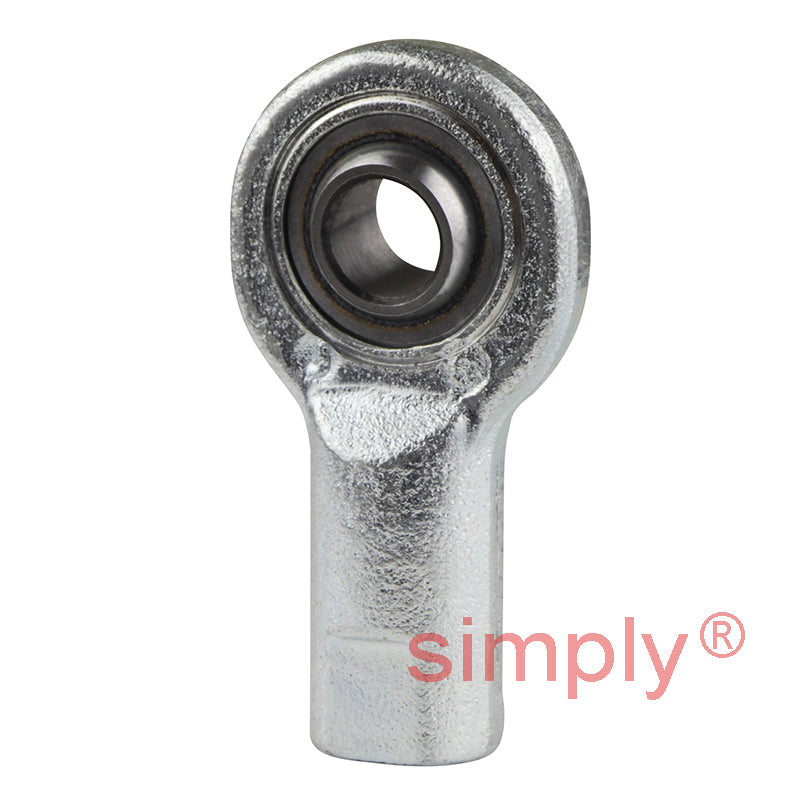

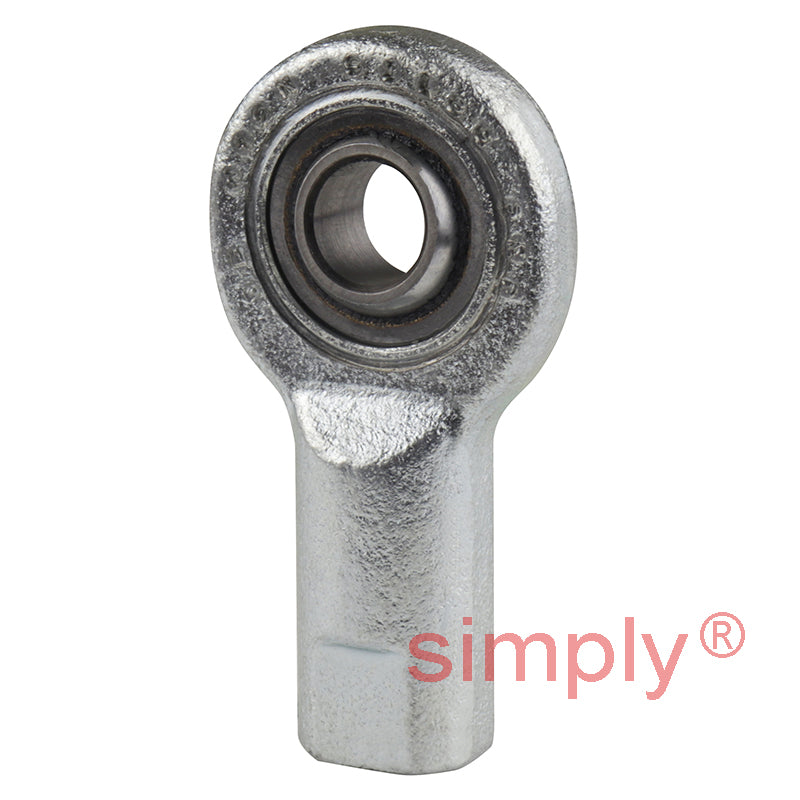

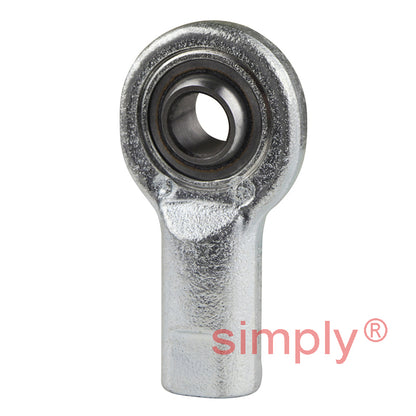

SKF SIL8C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M8 Thread
SKF SIL8C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M8 Thread
Regular price
$70.14
ex VAT
Regular price
Sale price
$70.14
ex VAT
Equivalent to: GIL8UK
In stock
Price Break
10+
$62.42
19+
$58.92
29+
$58.22
39+
$57.51
49+
$56.81
74+
$56.11
99+
$52.61
199+
$51.90
249+
$51.20
499+
$50.50
999+
$49.10
Couldn't load pickup availability
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL8UK
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M8
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 8mm
- Liner Type:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 8mm |
|---|---|
| d2 max | 25mm |
| G 6H | M8 |
| B | 8mm |
| C1 max | 6.5mm |
| h1 | 36mm |
| a | 15deg |
| Dynamic load C | 5.8 kN |
| Static load Co | 12.9 kN |
| Weight | 0.036 kg |
| dk | 13mm |
| d4 | 13mm |
| l3 min | 15mm |
| l4 max | 50mm |
| l5 | 9mm |
| l7 min | 11mm |
| r1 min | 0.3mm |
| w h14 | 11mm |
