SKU: SIL12C-SKF

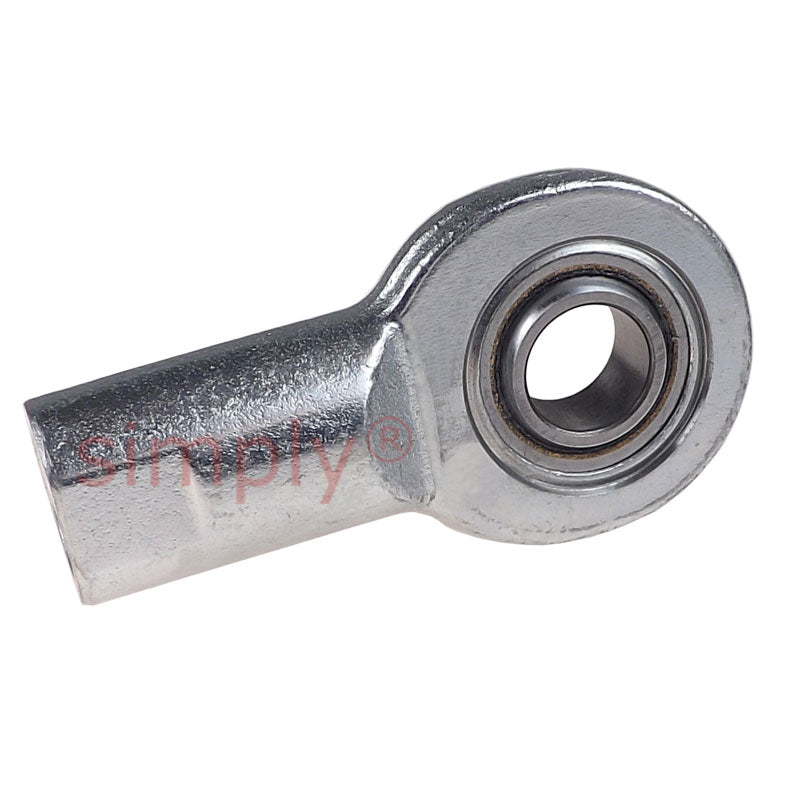

SKF SIL12C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M12 Thread
SKF SIL12C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M12 Thread
Regular price
$89.65
ex VAT
Regular price
Sale price
$89.65
ex VAT
Equivalent to: GIL12UK
In stock
Price Break
10+
$79.79
19+
$75.31
29+
$74.41
39+
$73.51
49+
$72.62
74+
$71.72
99+
$67.24
199+
$66.34
249+
$65.44
499+
$64.55
999+
$62.76
Couldn't load pickup availability
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL12UK
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Liner Type:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| d2 max | 35mm |
| G 6H | M12 |
| B | 10mm |
| C1 max | 8.5mm |
| h1 | 50mm |
| a | 10deg |
| Dynamic load C | 11.4 kN |
| Static load Co | 25.5 kN |
| Weight | 0.11 kg |
| dk | 18mm |
| d4 | 19mm |
| l3 min | 18mm |
| l4 max | 69mm |
| l5 | 12mm |
| l7 min | 17mm |
| r1 min | 0.3mm |
| w h14 | 17mm |
