SKU: SIL10C-CDX

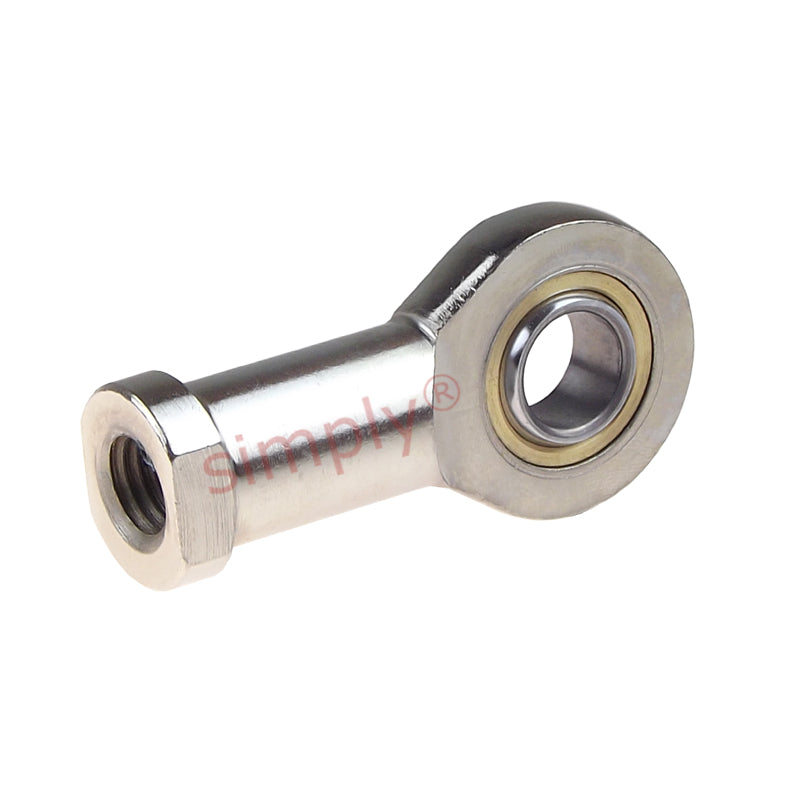

Codex SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread
Codex SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread
Regular price
$53.56
ex VAT
Regular price
Sale price
$53.56
ex VAT
Equivalent to: GIL10UK
In stock
Price Break
10+
$47.67
19+
$44.99
29+
$44.45
39+
$43.92
49+
$43.38
74+
$42.85
99+
$40.17
199+
$39.63
249+
$39.10
499+
$38.56
999+
$37.49
Couldn't load pickup availability
Description
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL10UK
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M10
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
- Material:
- PTFE Sintered Bronze Lined

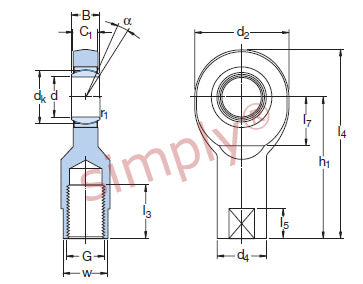

Technical
Technical
| d | 10mm |
|---|---|
| d2 max | 30mm |
| G | M10 |
| B | 9mm |
| C1 max | 7.5mm |
| h1 | 43mm |
| Max misalignment angle | 12 degrees |
| Dynamic load | 8.65 kN |
| Static load | 19 kN |
| dk | 16mm |
| d4 | 16mm |
| l3 min | 15mm |
| l4 max | 60mm |
| l5 | 11mm |
| l7 min | 13mm |
| r1 min | 0.3mm |
| w h14 | 14mm |
| Weight | 0.065 kg |
