SKU: SIKAC10M-CDX

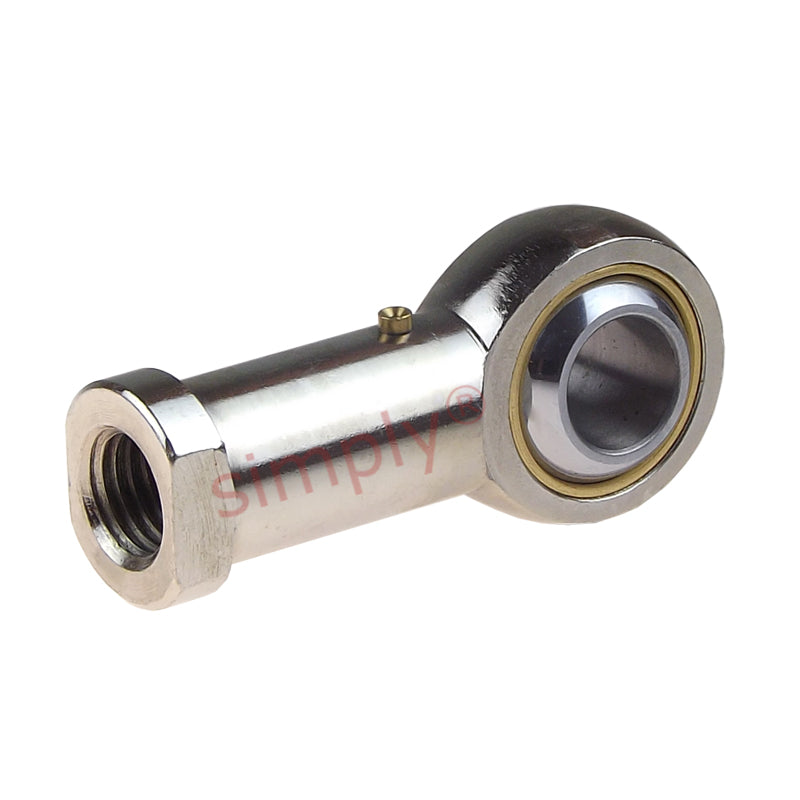

Codex SIKAC10M Right Hand Steel / Bronze Lined Plain Female Rod End M10x1.5 Thread
Codex SIKAC10M Right Hand Steel / Bronze Lined Plain Female Rod End M10x1.5 Thread
Regular price
$20.09
ex VAT
Regular price
Sale price
$20.09
ex VAT
Equivalent to: GIKF10PB TSF10 SIBP10S PHS10 SF10 FB-M10
In stock
Price Break
10+
$9.49
19+
$8.95
29+
$8.85
39+
$8.74
49+
$8.64
74+
$8.53
99+
$8.00
199+
$7.89
249+
$7.78
499+
$7.68
999+
$7.46
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: GIKF10PB TSF10 SIBP10S PHS10 SF10 FB-M10
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M10x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
- Material:
- Bronze Lined
Technical
Technical
| d | 10mm |
|---|---|
| d2 max | 29mm |
| G | M10x1.5 |
| B | 14mm |
| C1 max | 10.5mm |
| h1 | 43mm |
| Max misalignment angle | 13 degrees |
| Dynamic load | 10 kN |
| Static load | 12.2 kN |
| dk | 19mm |
| d3 | 15mm |
| d4 max | 20mm |
| l3 min | 15mm |
| l4 max | 59mm |
| l5 | 6.5mm |
| l7 min | 14mm |
| r1 min | 0.3mm |
| w | 17mm |
| Weight | 0.072 kg |
