SKU: SIA45TXE-2LS-SKF

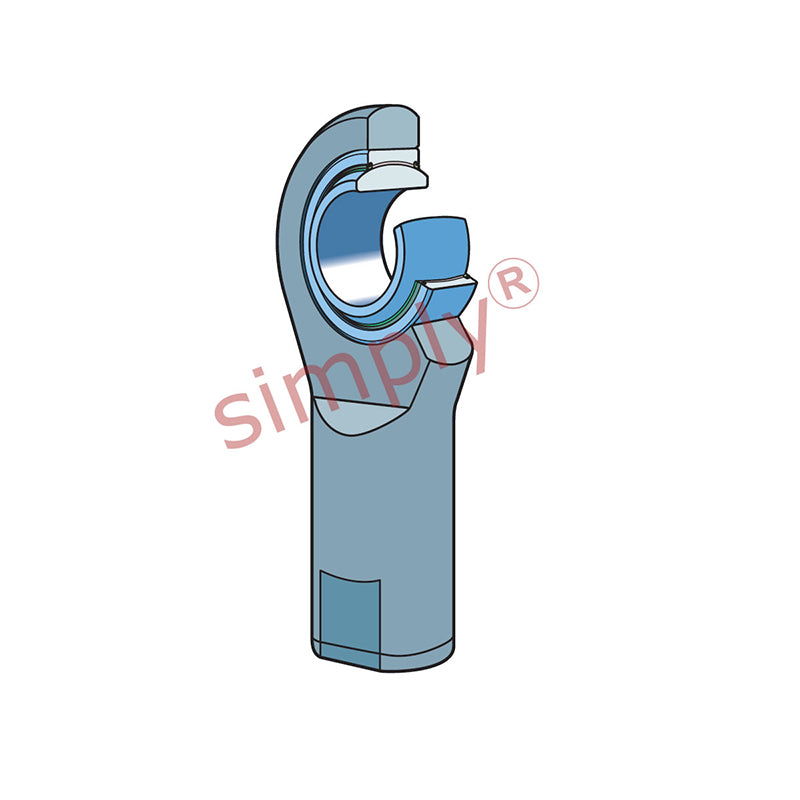

SKF SIA45TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M42x3 Thread
SKF SIA45TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M42x3 Thread
Regular price
$722.02
ex VAT
Regular price
Sale price
$722.02
ex VAT
In stock
Price Break
10+
$642.60
19+
$606.50
29+
$599.28
39+
$592.06
49+
$584.84
74+
$577.62
99+
$541.52
199+
$534.29
249+
$527.07
499+
$519.85
999+
$505.41
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M42x3
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 45mm
- Liner Type:
- PTFE Fabric Lined
Technical
Technical
| d | 45mm |
|---|---|
| d2 max | 104mm |
| G 6H | M42x3 |
| B | 32mm |
| C1 max | 28mm |
| h1 | 145mm |
| a | 7deg |
| Dynamic load C | 360 kN |
| Static load Co | 224 kN |
| Weight | 2.9 kg |
| dk | 60mm |
| d4 | 65mm |
| l3 min | 65mm |
| l4 max | 199mm |
| l5 | 30mm |
| l7 min | 50mm |
| r1 min | 0.6mm |
| w h14 | 55mm |
