SKU: SFT45-RHP

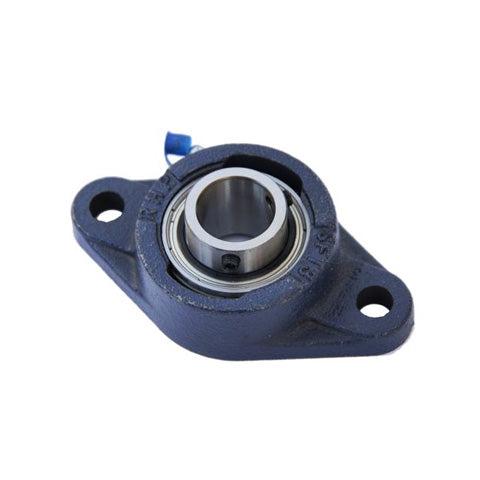

RHP SFT45 Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
RHP SFT45 Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Regular price
$126.46
ex VAT
Regular price
Sale price
$126.46
ex VAT
In stock
Price Break
10+
$112.55
19+
$106.23
29+
$104.96
39+
$103.70
49+
$102.43
74+
$101.17
99+
$94.85
199+
$93.58
249+
$92.32
499+
$91.05
999+
$88.52
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SFT
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.1mm |
| H | 179.4mm |
| J | 148.5mm |
| G | 16mm |
| A | 35.3mm |
| A1 | 54.18mm |
| A4 | 14.3mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
