SKU: SFT35EC-RHP

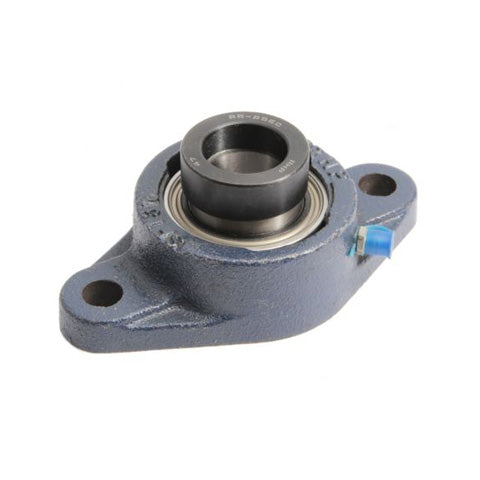

RHP SFT35EC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
RHP SFT35EC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
Regular price
$102.16
ex VAT
Regular price
Sale price
$102.16
ex VAT
In stock
Price Break
10+
$90.92
19+
$85.81
29+
$84.79
39+
$83.77
49+
$82.75
74+
$81.73
99+
$76.62
199+
$75.60
249+
$74.58
499+
$73.56
999+
$71.51
Couldn't load pickup availability
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SFT
- Bolt Hole Centres:
- 130mm

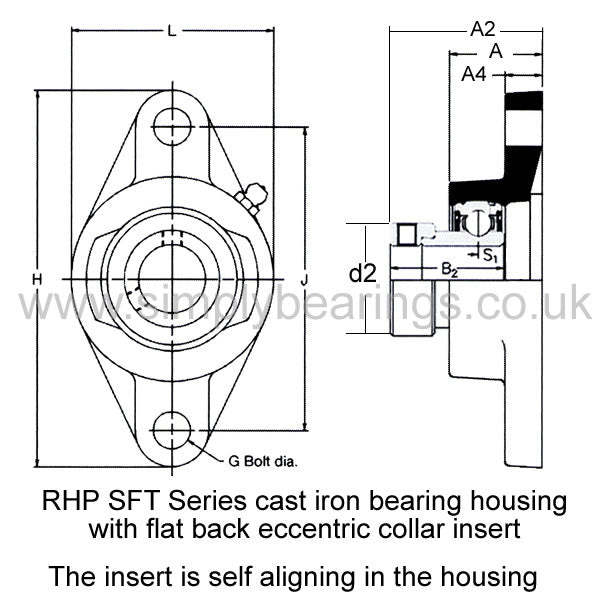

Technical
Technical
| Bore | 35mm |
|---|---|
| L | 95.5mm |
| H | 155.5mm |
| J | 130mm |
| G | 12mm |
| A | 31.4mm |
| A2 | 50.34mm |
| A4 | 12.7mm |
| B2 | 38.88mm |
| s1 | 9.55mm |
| d2 | 55.58mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
