SKU: SFT35A-RHP

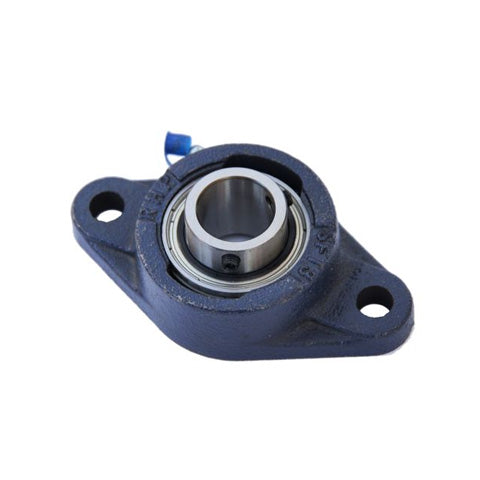

RHP SFT35A Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
RHP SFT35A Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
Regular price
$100.03
ex VAT
Regular price
Sale price
$100.03
ex VAT
In stock
Price Break
10+
$89.03
19+
$84.03
29+
$83.02
39+
$82.02
49+
$81.02
74+
$80.02
99+
$75.02
199+
$74.02
249+
$73.02
499+
$72.02
999+
$70.02
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SFT
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 95.5mm |
| H | 155.5mm |
| J | 130mm |
| G | 12mm |
| A | 31.4mm |
| A1 | 46.41mm |
| A4 | 12.7mm |
| B1 | 34.9mm |
| s1 | 9.55mm |
| d1 | 46.69mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35AG+insonly">1235-35AG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
