SKU: SFT3/4DEC-RHP

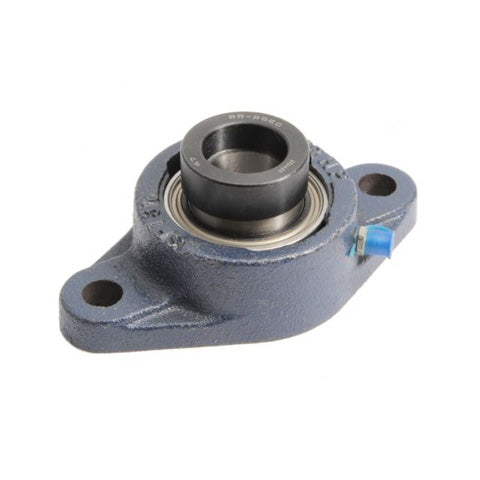

RHP SFT3/4DEC Two Bolt Oval Cast Iron Flange Housing 3/4 inch Bore Insert
RHP SFT3/4DEC Two Bolt Oval Cast Iron Flange Housing 3/4 inch Bore Insert
Regular price
$78.82
ex VAT
Regular price
Sale price
$78.82
ex VAT
In stock
Price Break
10+
$70.15
19+
$66.21
29+
$65.42
39+
$64.63
49+
$63.84
74+
$63.06
99+
$59.12
199+
$58.33
249+
$57.54
499+
$56.75
999+
$55.17
Couldn't load pickup availability
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SFT
- Bolt Hole Centres:
- 89.99mm = 3.543 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 2.374 inch |
| H | 4.406 inch |
| J | 3.543 inch |
| G | 0.375 inch |
| A | 1.094 inch |
| A3 | 1.793 inch |
| A4 | 0.437 inch |
| B3 | 1.717 inch |
| s2 | 0.674 inch |
| d2 | 1.311 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4DECG+insonly">1020-3/4DECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
