SKU: SFT25EC-RHP
RHP SFT25EC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP SFT25EC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
$73.08
ex VAT
Regular price
Sale price
$73.08
ex VAT
In stock
Price Break
10+
$65.04
19+
$61.39
29+
$60.66
39+
$59.93
49+
$59.19
74+
$58.46
99+
$54.81
199+
$54.08
249+
$53.35
499+
$52.62
999+
$51.16
Couldn't load pickup availability
Description
Description
|

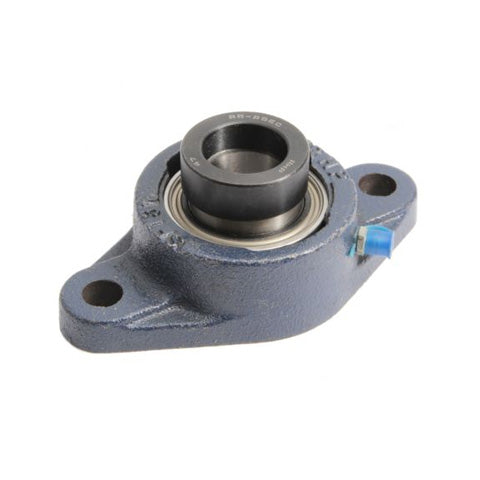

RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SFT
- Bolt Hole Centres:
- 99mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 68.3mm |
| H | 123.8mm |
| J | 99mm |
| G | 10mm |
| A | 28.6mm |
| A2 | 42.42mm |
| A4 | 11.1mm |
| B2 | 30.92mm |
| s1 | 7.56mm |
| d2 | 38.1mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25ECG+insonly">1225-25ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
