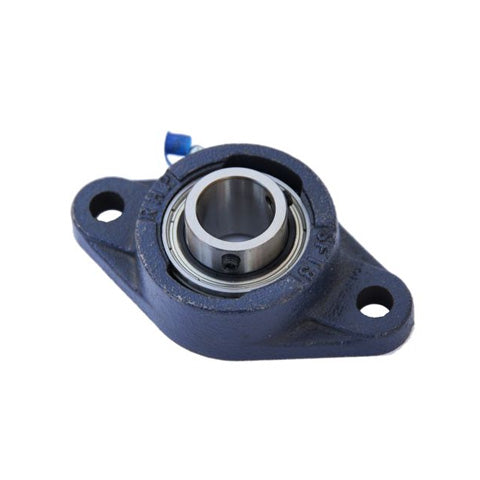

RHP SFT25A Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP SFT25A Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
$73.25
ex VAT
Regular price
Sale price
$73.25
ex VAT
In stock
Price Break
10+
$65.19
19+
$61.53
29+
$60.80
39+
$60.07
49+
$59.33
74+
$58.60
99+
$54.94
199+
$54.21
249+
$53.47
499+
$52.74
999+
$51.28
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SFT
- Bolt Hole Centres:
- 99mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 68.3mm |
| H | 123.8mm |
| J | 99mm |
| G | 10mm |
| A | 28.6mm |
| A1 | 38.84mm |
| A4 | 11.1mm |
| B1 | 27.35mm |
| s1 | 7.56mm |
| d1 | 34.01mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
