SKU: SFT1A-RHP

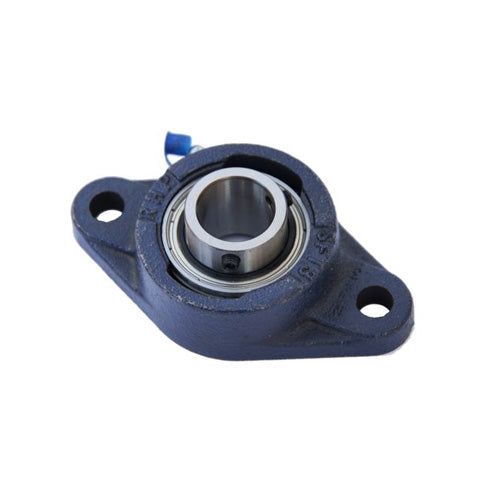

RHP SFT1A Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
RHP SFT1A Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
Regular price
$77.69
ex VAT
Regular price
Sale price
$77.69
ex VAT
In stock
Price Break
10+
$69.14
19+
$65.26
29+
$64.48
39+
$63.71
49+
$62.93
74+
$62.15
99+
$58.27
199+
$57.49
249+
$56.71
499+
$55.94
999+
$54.38
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SFT
- Bolt Hole Centres:
- 99.01mm = 3.898 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 2.689 inch |
| H | 4.874 inch |
| J | 3.898 inch |
| G | 0.4375 inch |
| A | 1.126 inch |
| A1 | 1.529 inch |
| A4 | 0.437 inch |
| B1 | 1.077 inch |
| s1 | 0.298 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1AG+insonly">1225-1AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
