SKU: SFT1-RHP

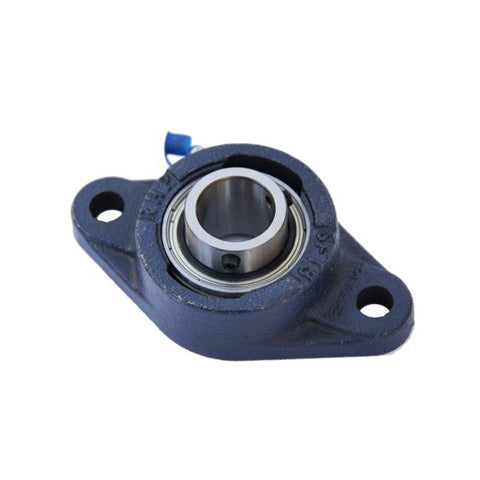

RHP SFT1 Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
RHP SFT1 Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
Regular price
$70.79
ex VAT
Regular price
Sale price
$70.79
ex VAT
In stock
Price Break
10+
$63.00
19+
$59.46
29+
$58.76
39+
$58.05
49+
$57.34
74+
$56.63
99+
$53.09
199+
$52.38
249+
$51.68
499+
$50.97
999+
$49.55
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SFT
- Bolt Hole Centres:
- 99.01mm = 3.898 inch

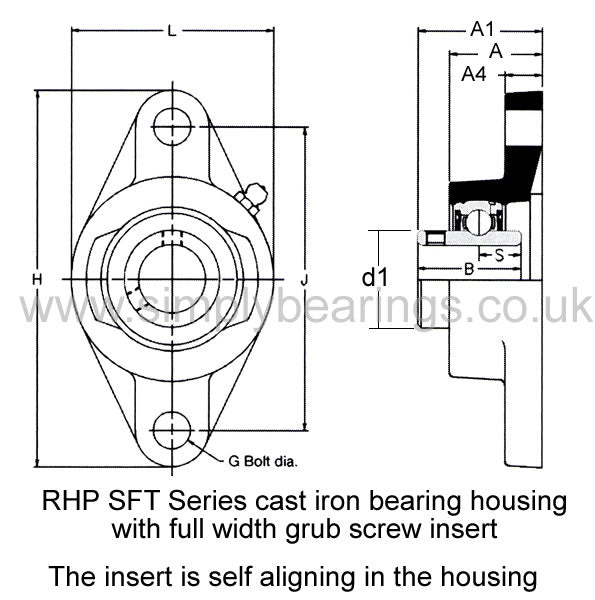

Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 2.689 inch |
| H | 4.874 inch |
| J | 3.898 inch |
| G | 0.4375 inch |
| A | 1.126 inch |
| A1 | 1.529 inch |
| A4 | 0.437 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-1G+insonly">1025-1G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
