SKU: SF2.7/8-RHP

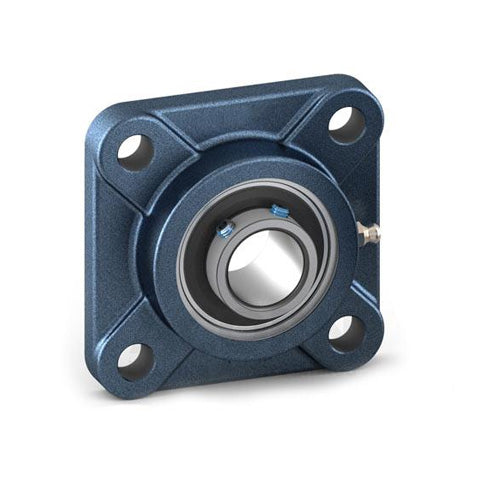

RHP SF2-7/8 Four Bolt Square Cast Iron Flange Housing and 2-7/8 inch Bore Grub Screw Full Width Insert
RHP SF2-7/8 Four Bolt Square Cast Iron Flange Housing and 2-7/8 inch Bore Grub Screw Full Width Insert
Regular price
$474.06
ex VAT
Regular price
Sale price
$474.06
ex VAT
In stock
Price Break
10+
$421.91
19+
$398.21
29+
$393.47
39+
$388.73
49+
$383.99
74+
$379.25
99+
$355.55
199+
$350.80
249+
$346.06
499+
$341.32
999+
$331.84
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 73.03mm = 2.875 (2-7/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 152.4mm = 6 inch
Technical
Technical
| Bore | 2-7/8 inch |
|---|---|
| L | 7.736 inch |
| H | 6.24 inch |
| J | 6 inch |
| G | 0.75 inch |
| A | 2.02 |
| A1 | 3.185 inch |
| A4 | 0.906 inch |
| B | 3.062 |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static Load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-7/8G+insonly">1075-2-7/8G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
