SKU: SER.208-24

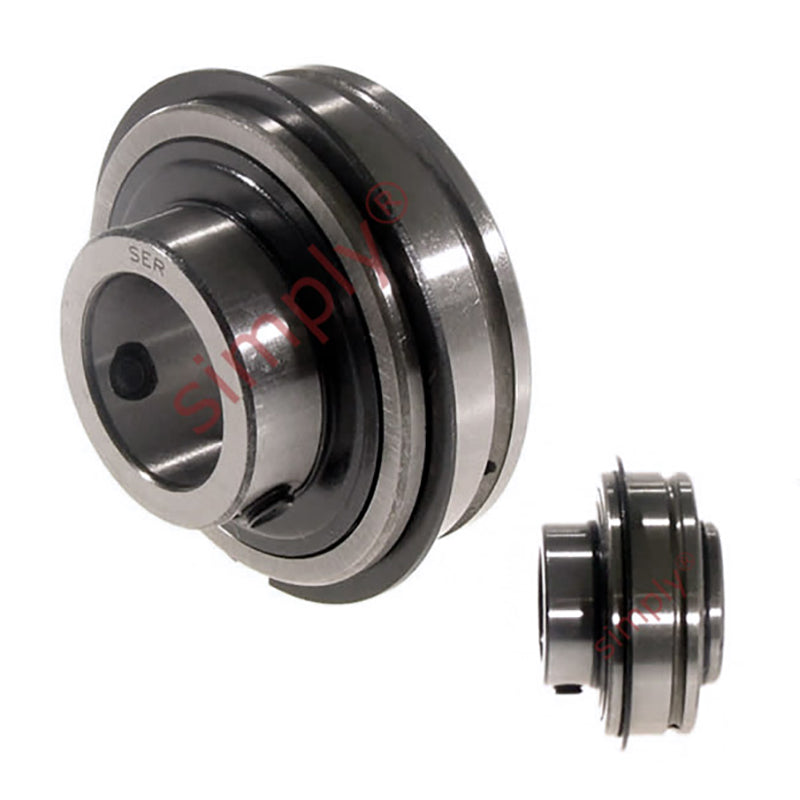

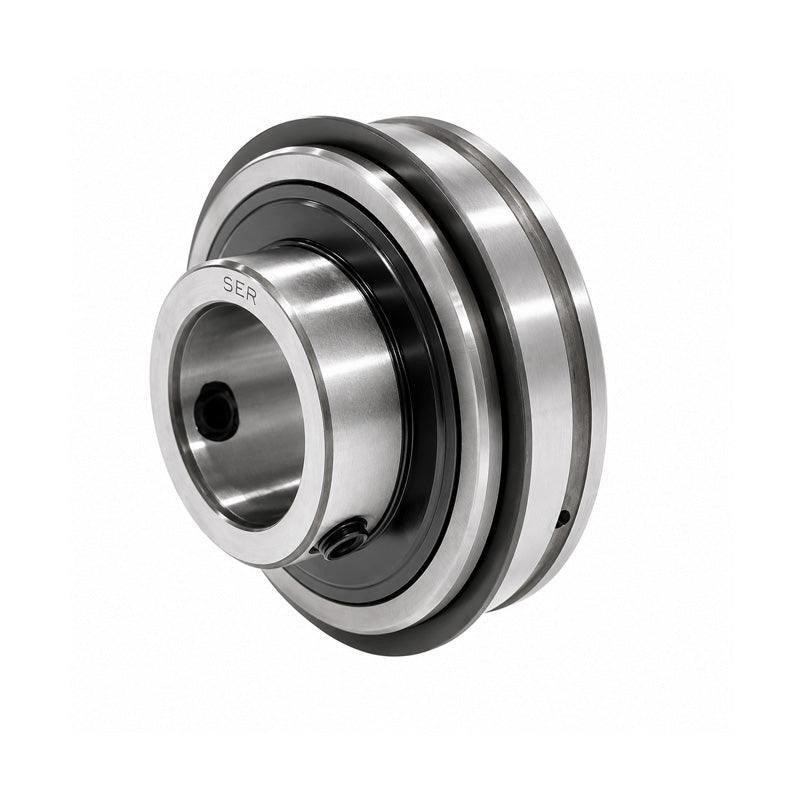

SER208-24 Imperial Bearing Insert and Snap Ring 1-1/2 inch Bore 80mm Outside Dia
SER208-24 Imperial Bearing Insert and Snap Ring 1-1/2 inch Bore 80mm Outside Dia
Regular price
$16.42
ex VAT
Regular price
Sale price
$16.42
ex VAT
In stock
Price Break
10+
$14.61
19+
$13.79
29+
$13.63
39+
$13.46
49+
$13.30
74+
$13.14
99+
$12.32
199+
$12.15
249+
$11.99
499+
$11.82
999+
$11.49
Couldn't load pickup availability
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- SER
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 27.8mm |
| n | 19mm |
| m | 30.2mm |
| E | 22.62mm |
| a | 1.65mm |
| h | 6.4mm |
| R | 8.72mm |
| J | 3.28mm |
| P | 86.6mm |
| G | 8mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.72 kg |
| Dynamic load | 2280 kgf |
| Static load | 1590 kgf |
| Rec max speed | 4000 rpm |
