SKU: SER.206-19

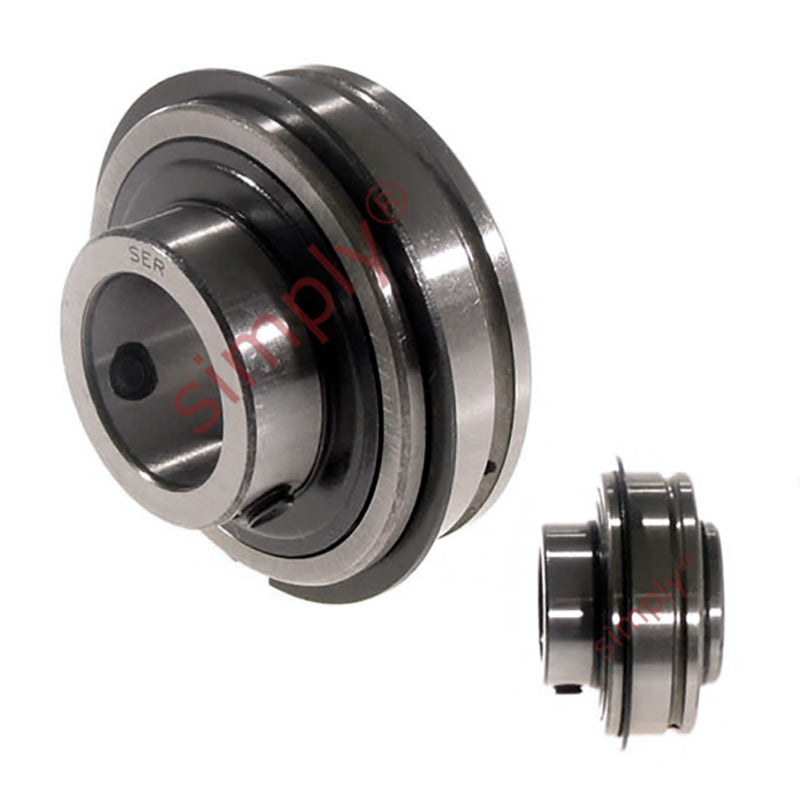

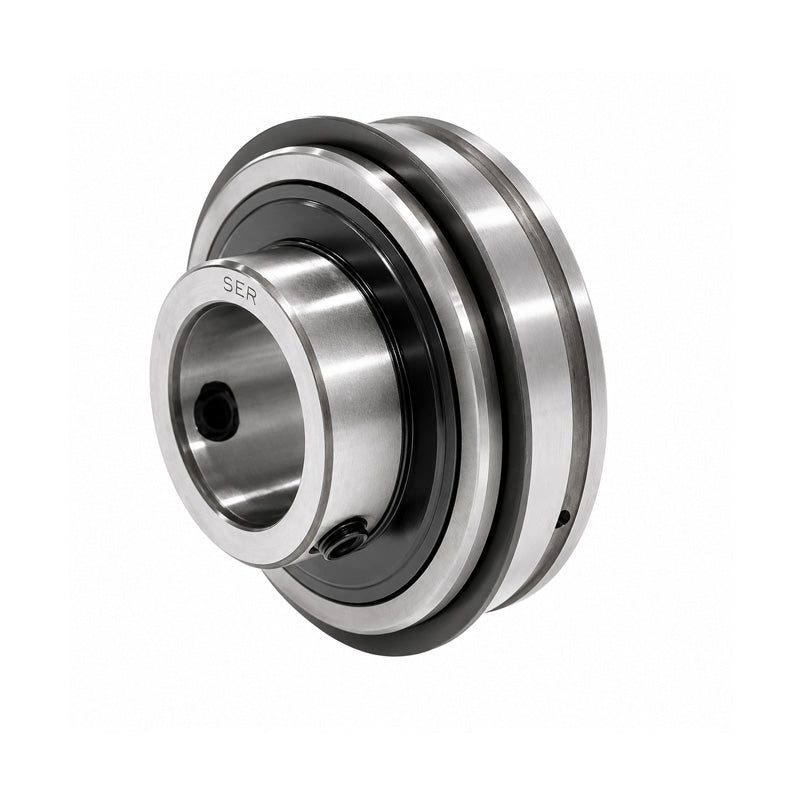

SER206-19 Imperial Bearing Insert and Snap Ring 1-3/16 inch Bore 62mm Outside Dia
SER206-19 Imperial Bearing Insert and Snap Ring 1-3/16 inch Bore 62mm Outside Dia
Regular price
$21.37
ex VAT
Regular price
Sale price
$21.37
ex VAT
In stock
Price Break
3+
$10.09
4+
$9.53
9+
$9.41
19+
$9.30
49+
$9.19
99+
$9.07
499+
$8.51
999+
$8.39
1999+
$8.28
2999+
$8.16
4999+
$7.94
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- SER
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 22.2mm |
| n | 15.9mm |
| m | 22.2mm |
| E | 17.02mm |
| a | 1.65mm |
| h | 5.6mm |
| R | 5.92mm |
| J | 3.28mm |
| P | 67.7mm |
| G | 5.6mm |
| Grub screw | M6X1.0 |
| Weight | 0.39 kg |
| Dynamic load | 1530 kgf |
| Static load | 1020 kgf |
