SKU: SER.205-16

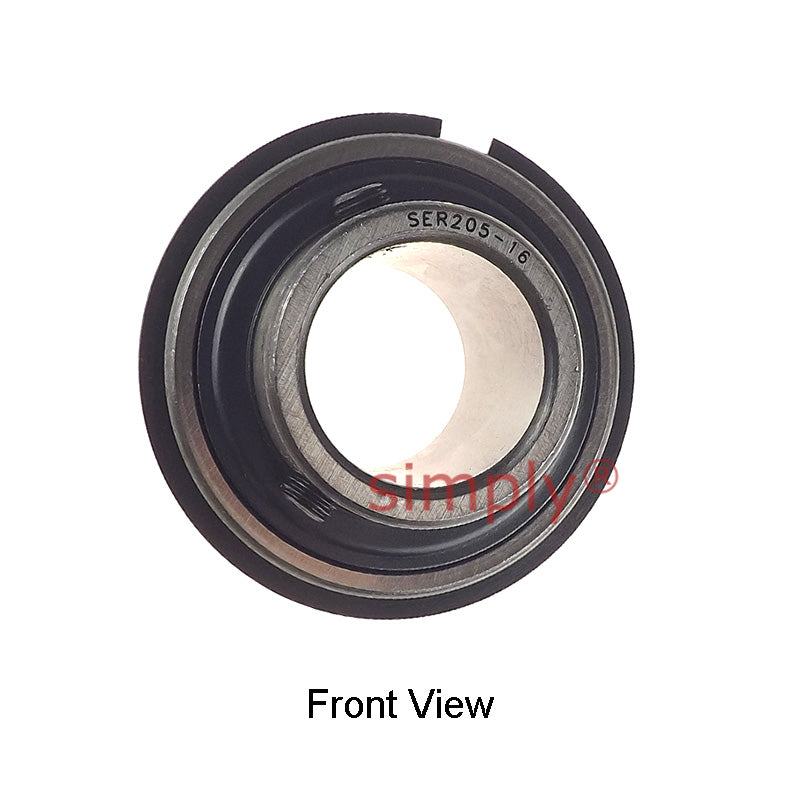

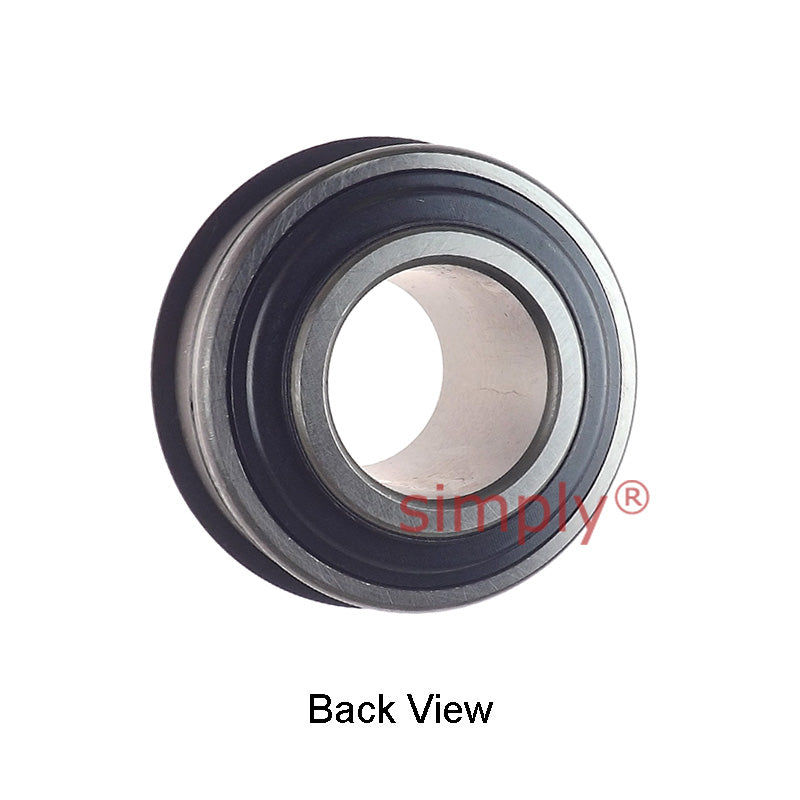

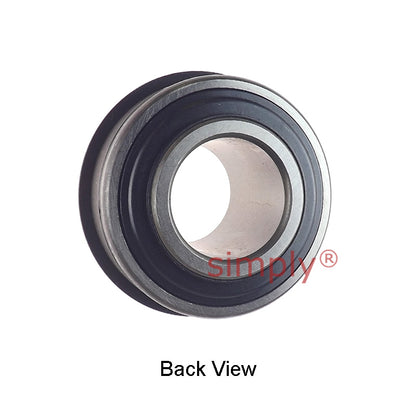

SER205-16 Imperial Bearing Insert and Snap Ring 1 inch Bore 52mm Outside Dia
SER205-16 Imperial Bearing Insert and Snap Ring 1 inch Bore 52mm Outside Dia
Regular price
$14.60
ex VAT
Regular price
Sale price
$14.60
ex VAT
In stock
Price Break
3+
$6.90
4+
$6.51
9+
$6.43
19+
$6.36
49+
$6.28
99+
$6.20
499+
$5.81
999+
$5.74
1999+
$5.66
2999+
$5.58
4999+
$5.43
Description
Description
|

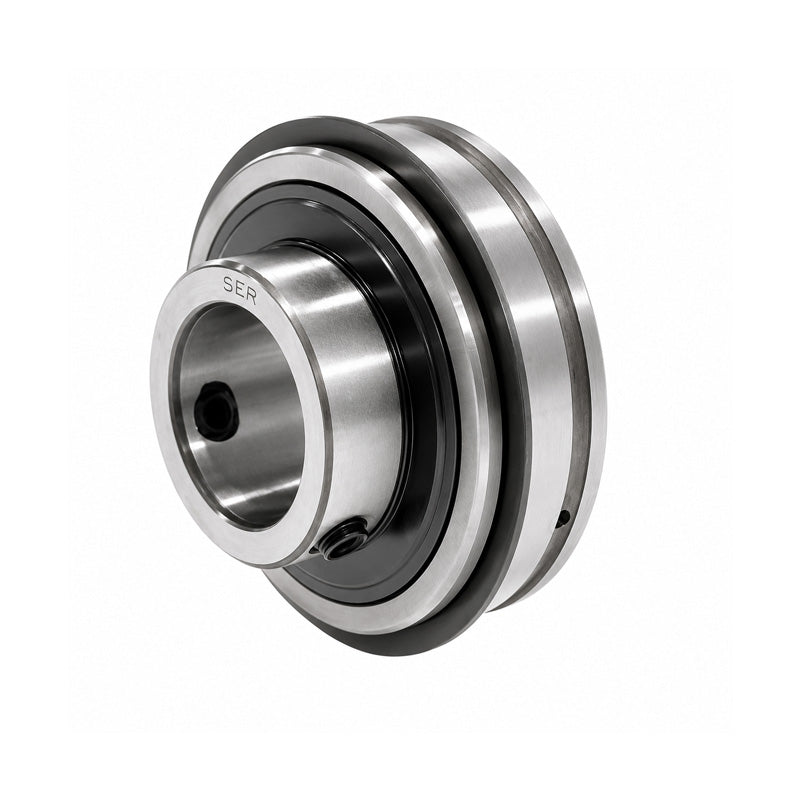

SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- SER
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| Bi | 34.9mm |
| Be | 19.1mm |
| n | 13.1mm |
| m | 21.8mm |
| E | 15.29mm |
| a | 1.07mm |
| h | 5.2mm |
| R | 5.74mm |
| J | 2.46mm |
| P | 57.9mm |
| G | 5.6mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.27 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
