SKU: SCHB1.1/2-RHP
RHP SCHB1-1/2 BSP Thread Cast Iron Hanger Bearing Unit and 1-1/2 inch Bore Insert 107mm Outside Diameter
RHP SCHB1-1/2 BSP Thread Cast Iron Hanger Bearing Unit and 1-1/2 inch Bore Insert 107mm Outside Diameter
Regular price
$175.41
ex VAT
Regular price
Sale price
$175.41
ex VAT
In stock
Price Break
10+
$156.11
19+
$147.34
29+
$145.59
39+
$143.84
49+
$142.08
74+
$140.33
99+
$131.56
199+
$129.80
249+
$128.05
499+
$126.30
999+
$122.79
Couldn't load pickup availability
Description
Description
|

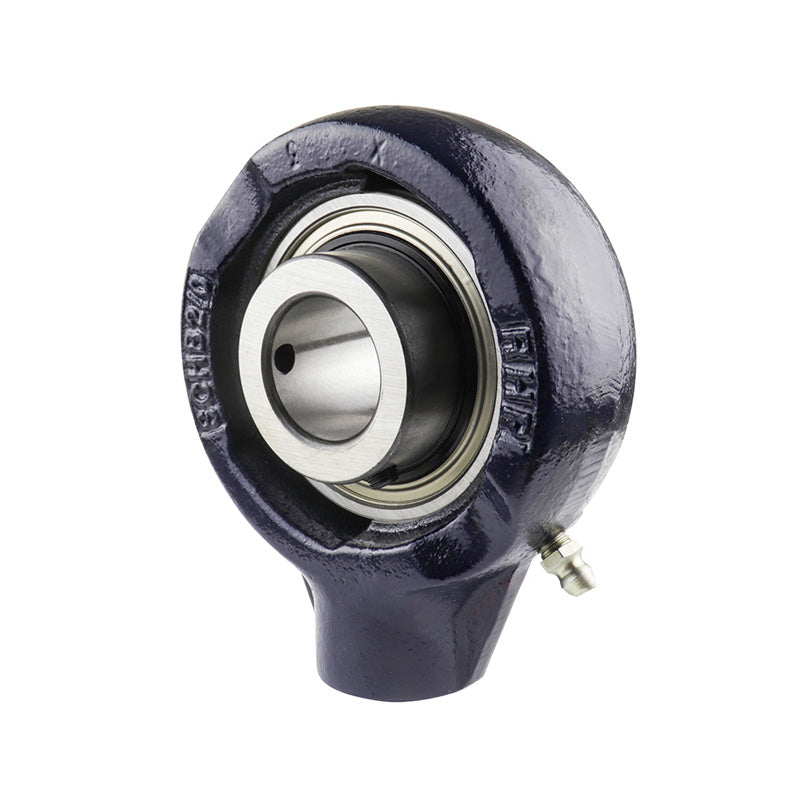

RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 107mm
- Style:
- SCHB
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| G1 | 0.748 inch |
| L | 4.213 inch |
| H | 5.02 inch |
| H1 | 2.874 inch |
| Threads | 3/4 BSP |
| A | 1.555 inch |
| A1 | 1.094 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
