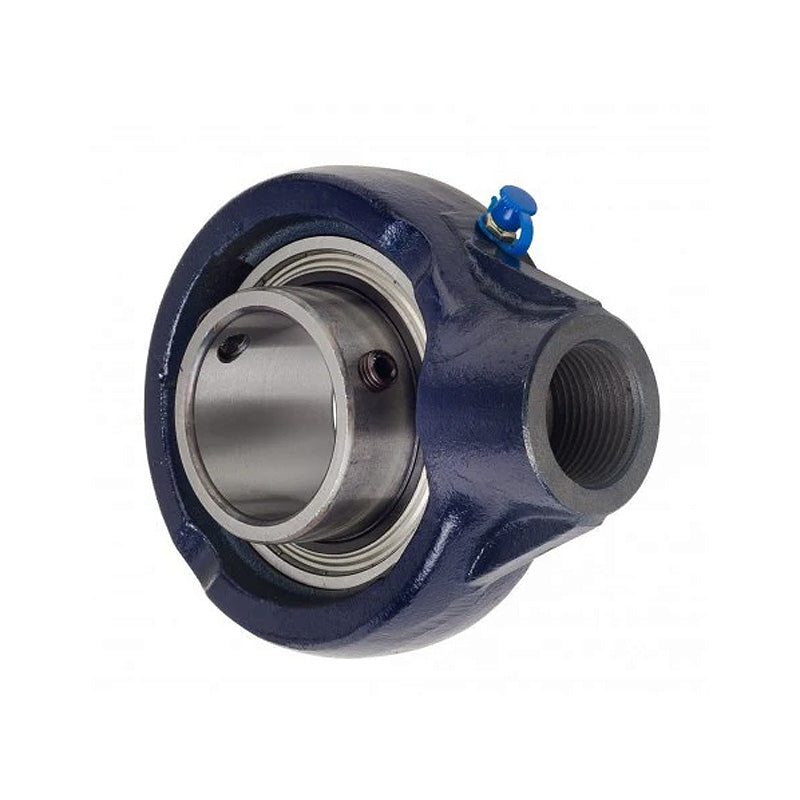

• RHP SCH1 Metric Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
1 1

SKU: SCH1-RHP

RHP SCH1 Metric Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter

RHP SCH1 Metric Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
$120.55 ex VAT
$120.55 ex VAT
Sale Sold out

In stock

Price Break
10+ $107.29
19+ $101.26
29+ $100.06
39+ $98.85
49+ $97.65
74+ $96.44
99+ $90.41
199+ $89.21
249+ $88.00
499+ $86.80
999+ $84.39
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
89mm
Style:
SCH
Technical
Bore 1 inch
G1 0.63 inch
L 3.504 inch
H 4.232 inch
H1 2.437 inch
Threads M20X2.5 Metric
A 1.319 inch
A1 0.875 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a>
Casting group 2/0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
