SKU: SBPP201.HMP

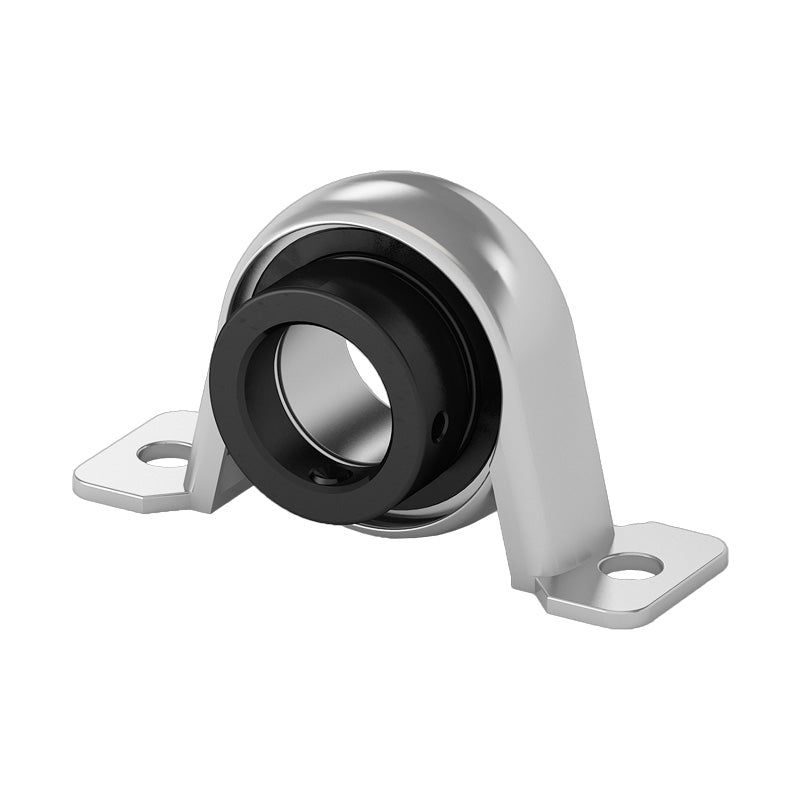

SBPP201 Pressed Steel Pillow Block Housing with 12mm Insert
SBPP201 Pressed Steel Pillow Block Housing with 12mm Insert
Regular price
$13.78
ex VAT
Regular price
Sale price
$13.78
ex VAT
Equivalent to: LPB12
In stock
Price Break
3+
$6.51
4+
$6.14
9+
$6.07
19+
$5.99
49+
$5.92
99+
$5.85
499+
$5.48
999+
$5.41
1999+
$5.34
2999+
$5.26
4999+
$5.12
Description
Description
|
2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
Equivalent: LPB12
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- SBPP
- Bolt Hole Centres:
- 68mm
Technical
Technical
| d | 12mm |
|---|---|
| h | 22.2mm |
| L | 86mm |
| e | 68mm |
| b | 25mm |
| s | 9.5mm |
| g | 3.2mm |
| w | 43.8mm |
| B1 | 22mm |
| n | 6mm |
| Bolt | M8 |
| Weight | 0.3 kg |
| Dynamic load | 750 N |
| Static load | 450 N |
