SKU: SBLF.207-23

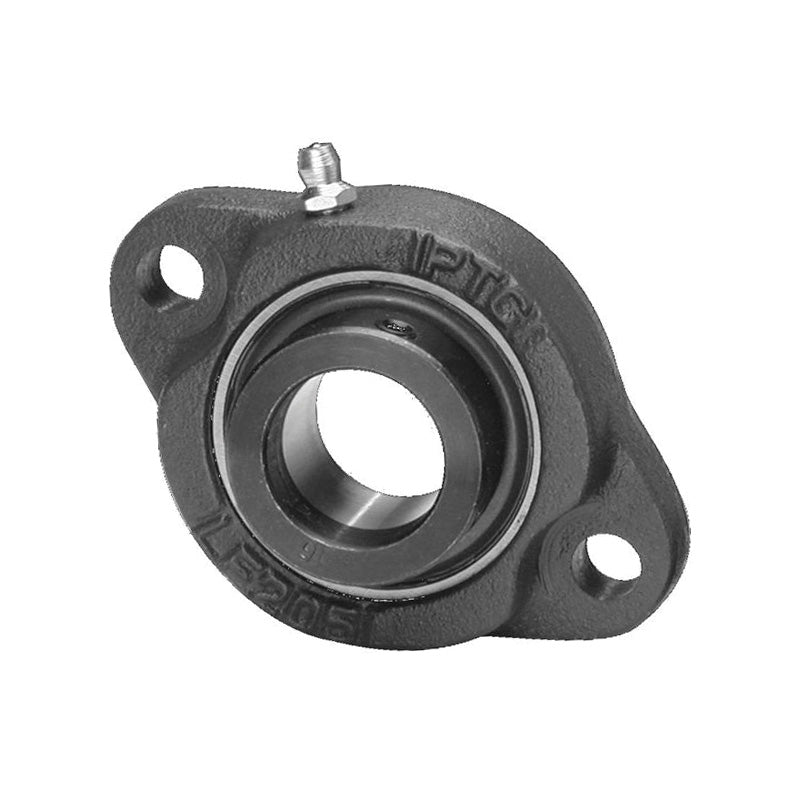

SBLF207-23 Imperial Two Bolt Cast Iron Oval Housing with 1-7/16 inch Bore Grub Screw Insert
SBLF207-23 Imperial Two Bolt Cast Iron Oval Housing with 1-7/16 inch Bore Grub Screw Insert
Regular price
$42.25
ex VAT
Regular price
Sale price
$42.25
ex VAT
In stock
Price Break
3+
$19.95
4+
$18.83
9+
$18.61
19+
$18.38
49+
$18.16
99+
$17.93
499+
$16.81
999+
$16.59
1999+
$16.36
2999+
$16.14
4999+
$15.69
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| a | 122mm |
| e | 100mm |
| b | 89mm |
| i | 13mm |
| s | 12mm |
| g | 13mm |
| l | 24mm |
| Bolt | M10 |
| z | 36.5mm |
| n | 8.5mm |
| Weight | 0.9 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
