SKU: SBFW206-20

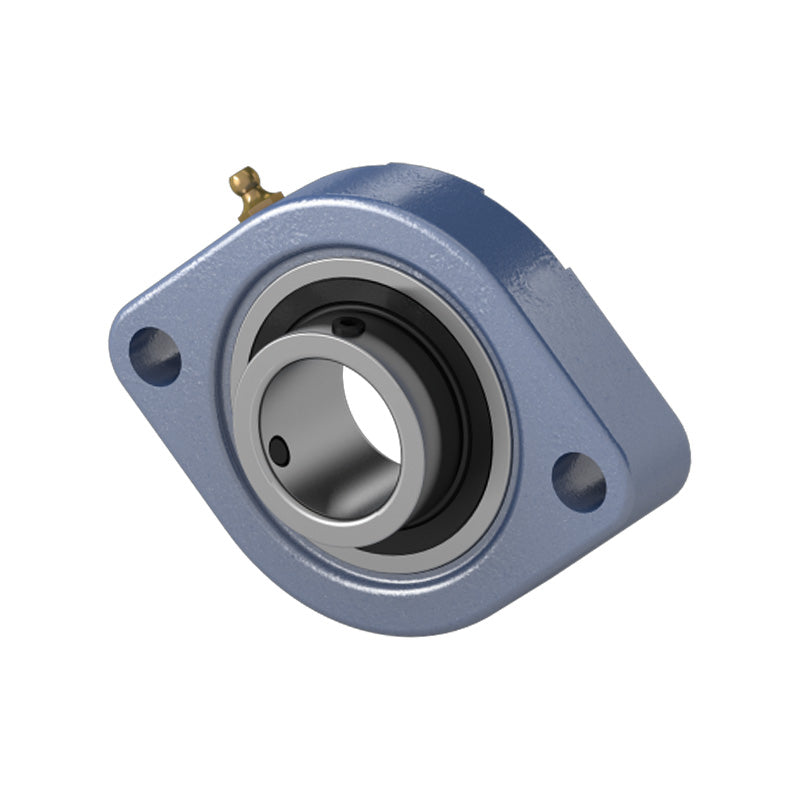

SBFW206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore
SBFW206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore
Regular price
$20.60
ex VAT
Regular price
Sale price
$20.60
ex VAT
In stock
Price Break
3+
$9.73
4+
$9.18
9+
$9.07
19+
$8.96
49+
$8.85
99+
$8.74
499+
$8.20
999+
$8.09
1999+
$7.98
2999+
$7.87
4999+
$7.65
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SBFW
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 112.5mm |
| e | 90.5mm |
| b | 84mm |
| i | 11.5mm |
| s | 11.5mm |
| l | 20.5mm |
| Bolt | M10 |
| z | 33.5mm |
| B | 30mm |
| n | 8mm |
| Weight | 0.8 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
