SKU: SBFW205-16

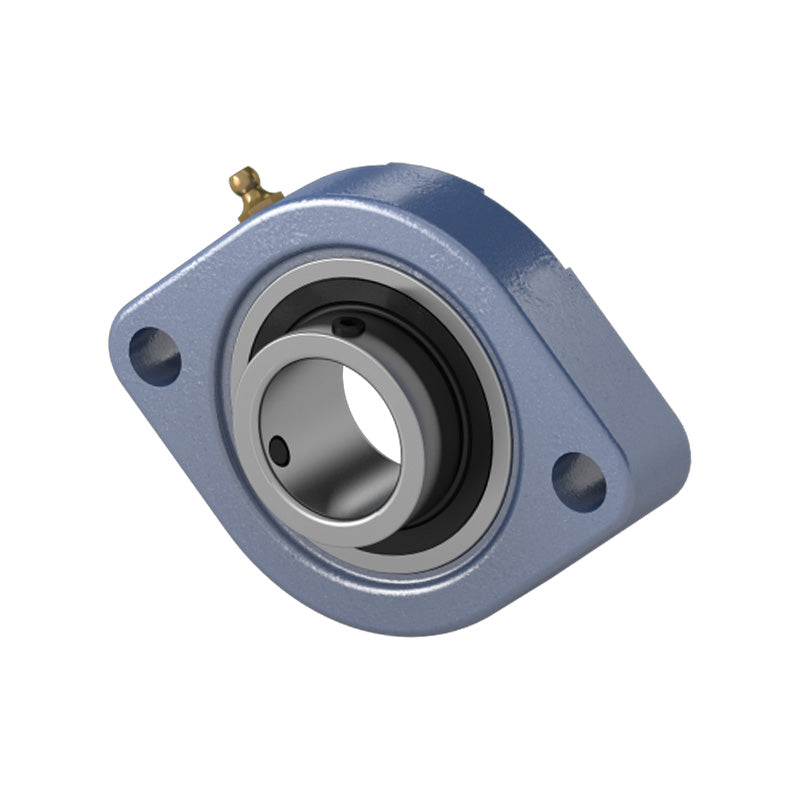

SBFW205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore
SBFW205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore
Regular price
$15.25
ex VAT
Regular price
Sale price
$15.25
ex VAT
In stock
Price Break
3+
$7.20
4+
$6.80
9+
$6.71
19+
$6.63
49+
$6.55
99+
$6.47
499+
$6.07
999+
$5.99
1999+
$5.91
2999+
$5.82
4999+
$5.66
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SBFW
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| d | 1 inch |
|---|---|
| a | 97mm |
| e | 76.2mm |
| b | 71mm |
| i | 9.5mm |
| s | 9mm |
| l | 17.5mm |
| Bolt | M8 |
| z | 29mm |
| B | 27mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
