SKU: SBFW204-12

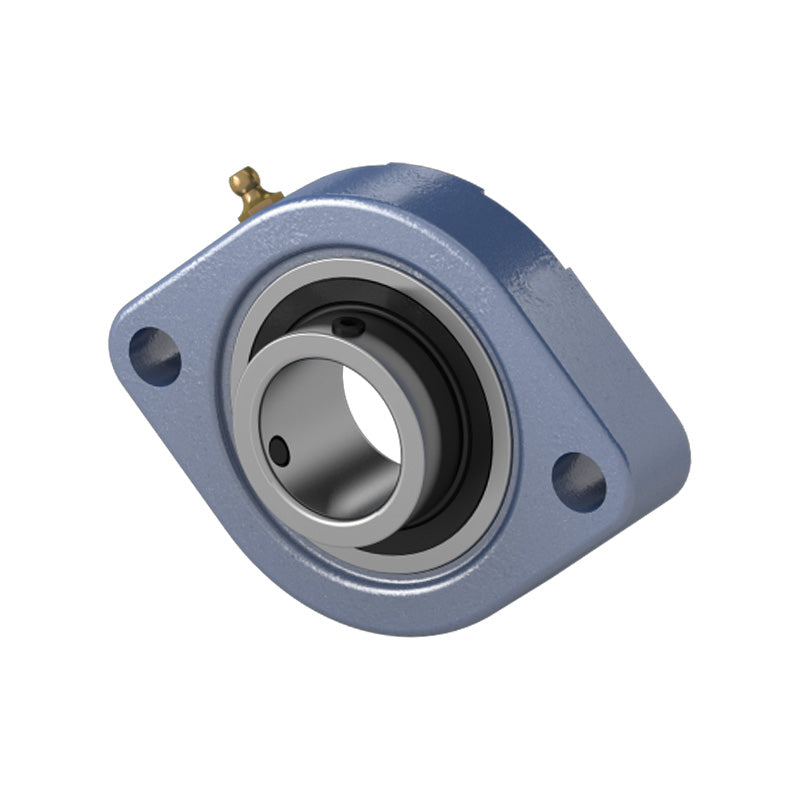

SBFW204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore
SBFW204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore
Regular price
$20.39
ex VAT
Regular price
Sale price
$20.39
ex VAT
In stock
Price Break
3+
$9.63
4+
$9.09
9+
$8.98
19+
$8.87
49+
$8.76
99+
$8.65
499+
$8.11
999+
$8.01
1999+
$7.90
2999+
$7.79
4999+
$7.57
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SBFW
- Bolt Hole Centres:
- 71.4mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| a | 90.5mm |
| e | 71.4mm |
| b | 66.5mm |
| i | 9.5mm |
| s | 9mm |
| l | 17mm |
| Bolt | M8 |
| z | 27.5mm |
| B | 25mm |
| n | 7mm |
| Weight | 0.4 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
