SKU: SB.208

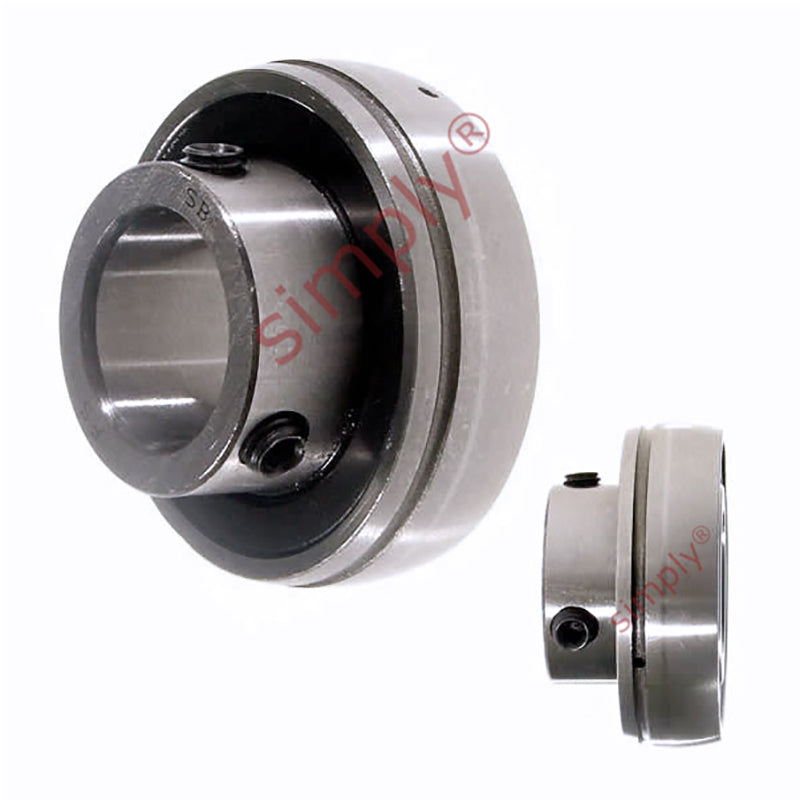

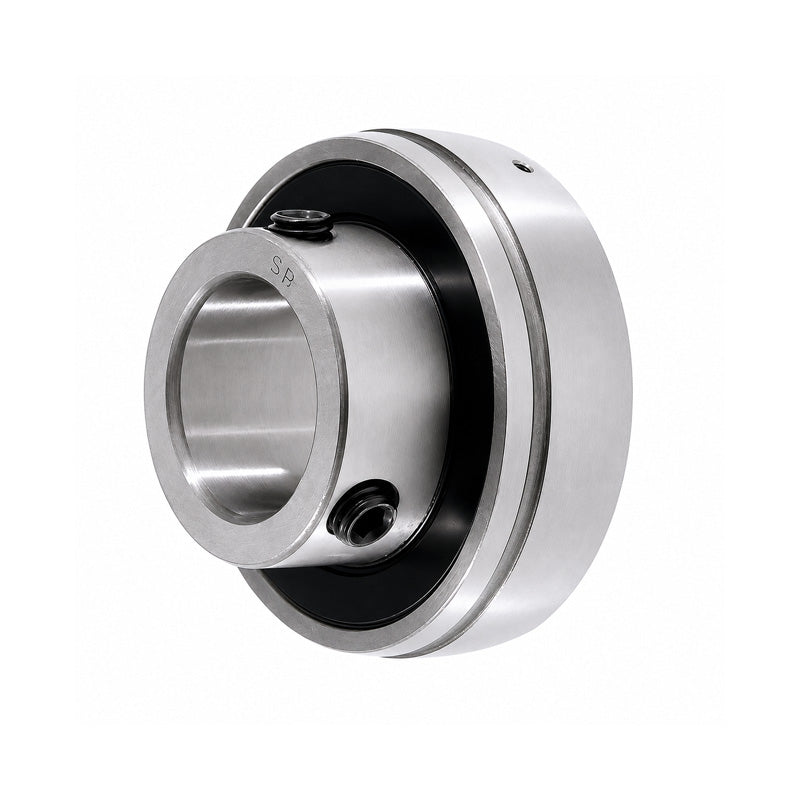

SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
Regular price
$15.24
ex VAT
Regular price
Sale price
$15.24
ex VAT
In stock
Price Break
10+
$13.56
19+
$12.80
29+
$12.65
39+
$12.50
49+
$12.34
74+
$12.19
99+
$11.43
199+
$11.28
249+
$11.13
499+
$10.97
999+
$10.67
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 40mm |
|---|---|
| Be | 18mm |
| D | 80mm |
| Bi | 34mm |
| n | 9mm |
| m | 25mm |
| G | 7mm |
| h | 6mm |
| Grub screw | M8X1.0 |
| Weight | 0.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
