SKU: SB.207

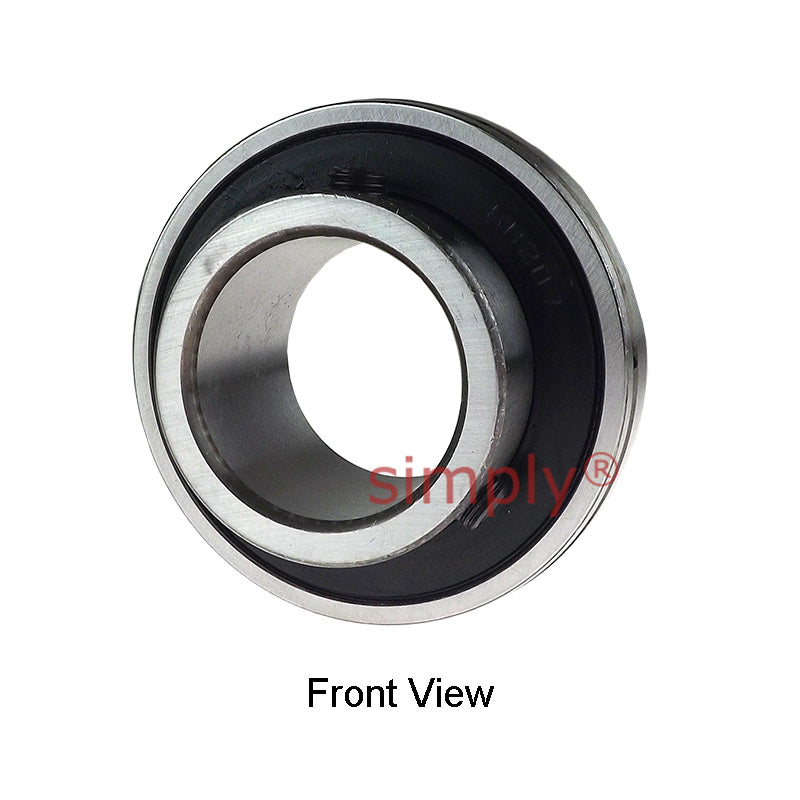

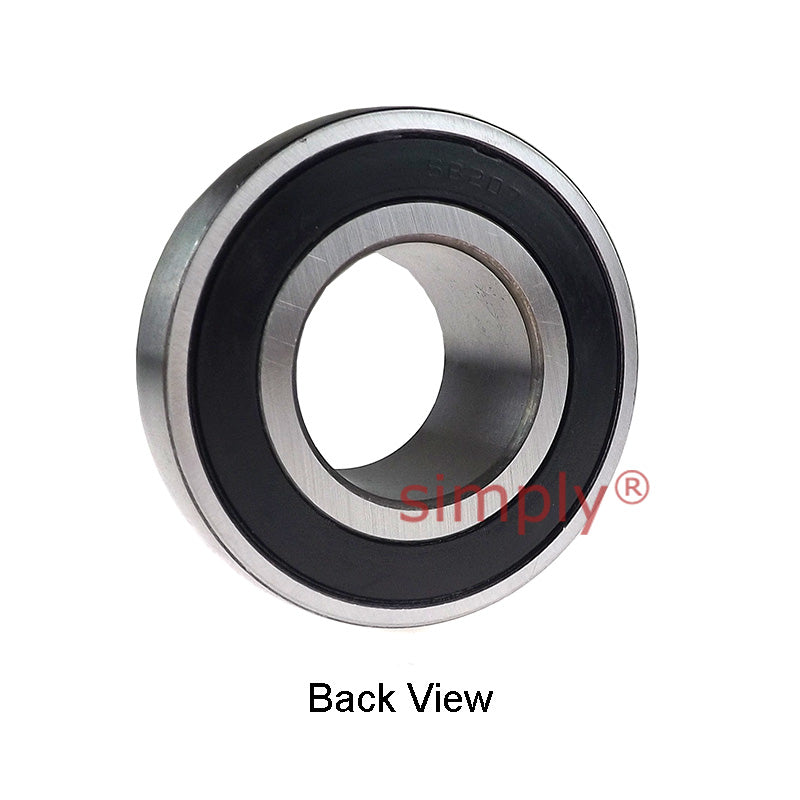

SB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
SB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
$17.26
ex VAT
Regular price
Sale price
$17.26
ex VAT
In stock
Price Break
3+
$8.15
4+
$7.69
9+
$7.60
19+
$7.51
49+
$7.42
99+
$7.33
499+
$6.87
999+
$6.78
1999+
$6.69
2999+
$6.60
4999+
$6.41
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- SB
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
