SKU: SB.206-20

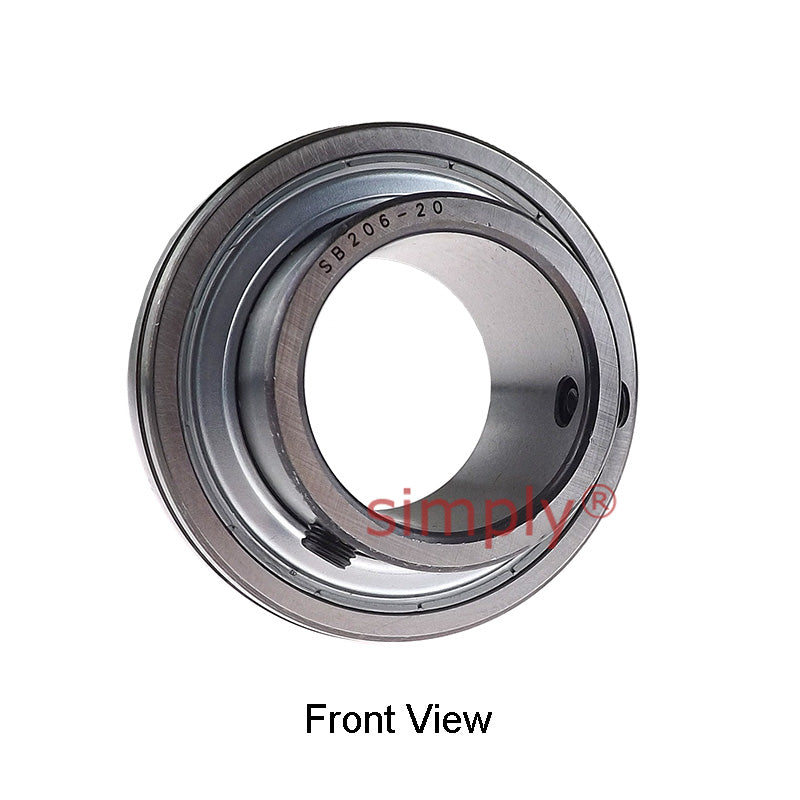

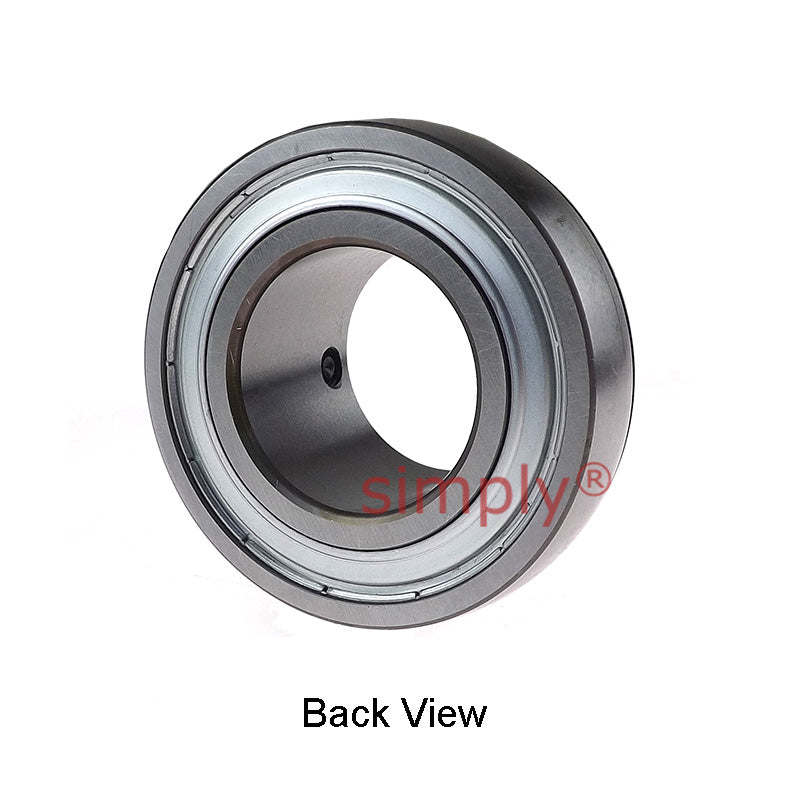

SB206-20 Imperial Bearing Insert with 1-1/4 inch Bore 62mm Outside Dia
SB206-20 Imperial Bearing Insert with 1-1/4 inch Bore 62mm Outside Dia
Regular price
$13.61
ex VAT
Regular price
Sale price
$13.61
ex VAT
In stock
Price Break
3+
$6.43
4+
$6.06
9+
$5.99
19+
$5.92
49+
$5.85
99+
$5.78
499+
$5.42
999+
$5.34
1999+
$5.27
2999+
$5.20
4999+
$5.05
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Style:
- SB
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| Be | 16mm |
| D | 62mm |
| Bi | 30mm |
| n | 8mm |
| m | 22mm |
| G | 5.5mm |
| h | 5mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.27 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
