SKU: SB.204

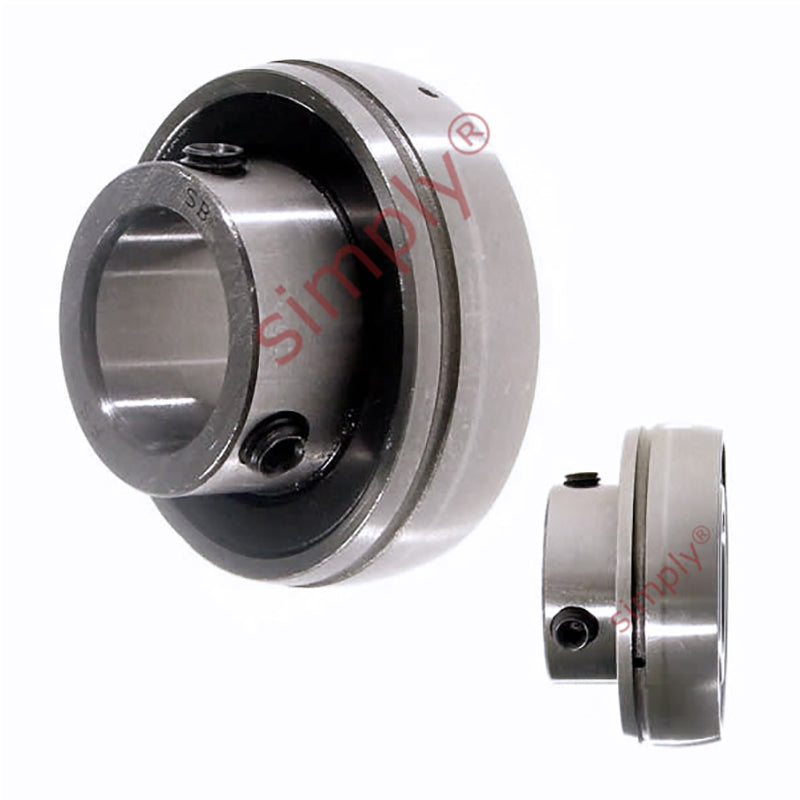

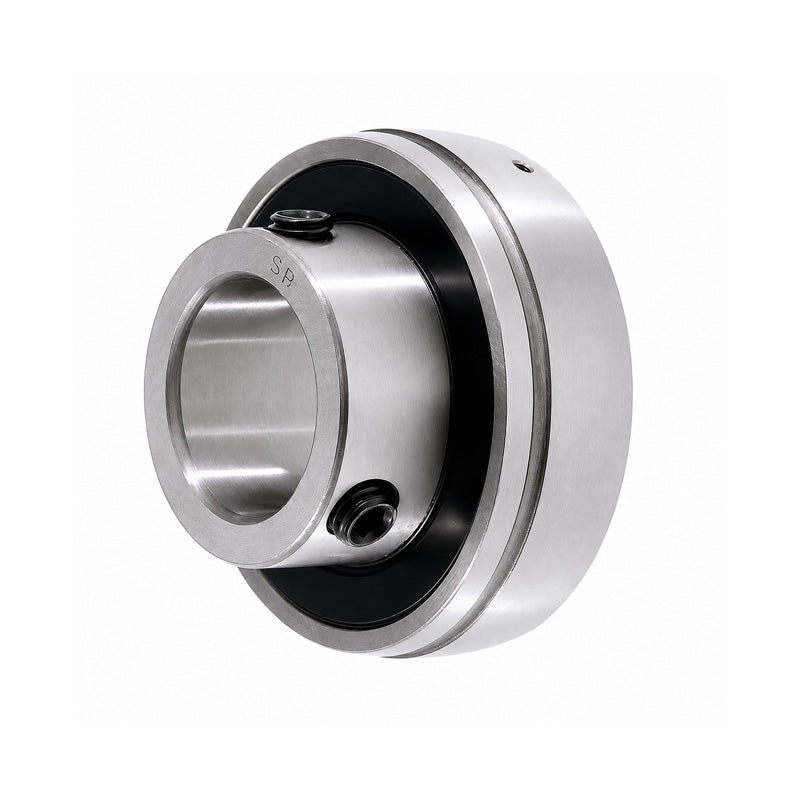

SB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
SB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
$11.31
ex VAT
Regular price
Sale price
$11.31
ex VAT
In stock
Price Break
10+
$10.07
19+
$9.50
29+
$9.39
39+
$9.27
49+
$9.16
74+
$9.05
99+
$8.48
199+
$8.37
249+
$8.26
499+
$8.14
999+
$7.92
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 20mm |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | M6X1.0 |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
